Stainless Steel Water Tanks.
Hygienic, durable and engineered for demanding water-storage requirements. PAQOS Stainless Steel Water Tanks are designed for dependable storage performance while supporting water hygiene.
Enquire About Your Tank →
Better storage for better water.
PAQOS Stainless Steel Water Tanks are designed as double-wall insulated stainless steel vessels, with configurations available for different water-storage applications.
The range includes insulated and non-insulated options, with stainless steel grades selected according to application and customer requirement.
Engineered around quality & hygiene.
The PAQOS tank range combines quality raw materials, stainless steel construction, advanced manufacturing, insulation and customer support.
Premium Quality Products
High-quality raw materials are used to construct premium-quality finished products.
Renowned Supplier
PAQOS states that it is an authorized channel partner of Jindal Stainless Steelway Ltd.
State-of-the-Art Technology
Seam welding, PUF injection, arm laser welding and laser cutting are part of the stated manufacturing technology.
High Grade Insulation
HCFC-free polyurethane rigid foam insulation is used for thermal insulation.
Hygiene
PAQOS highlights stainless steel construction as a hygienic option for water storage.
After-Sales Service
Customer care, email and mobile application support are provided for service requirements.
A smart choice for water storage.
PAQOS presents stainless steel water vessels as a hygienic and durable storage option.
| Parameter | PAQOS Stainless Steel Tank | Plastic Tank |
|---|---|---|
| Water Quality | Hygienic | Toxic |
| Medically | Approved | Rejected |
| Growth of Algae & Fungus | Nil | Continues |
| Life of Tank | Long Life | Short Life |
| Hygiene | All Time Clean | All Time Dirty |
| Heat Absorption | Good | Nil |
Built for demanding environments.
The PAQOS range combines stainless steel, structural strength, insulation and testing for dependable water-storage performance.
High PREN Value
Up to 3 mm SS Sheet
Up to 25-Year Warranty*
Hydrostatic Testing
Tough & Ductile Construction
High-Chloride SS2205 Option
Suitable for Harsh Environments
Tamper-Proof Hygiene Design
High Temperature Insulation
High Durability

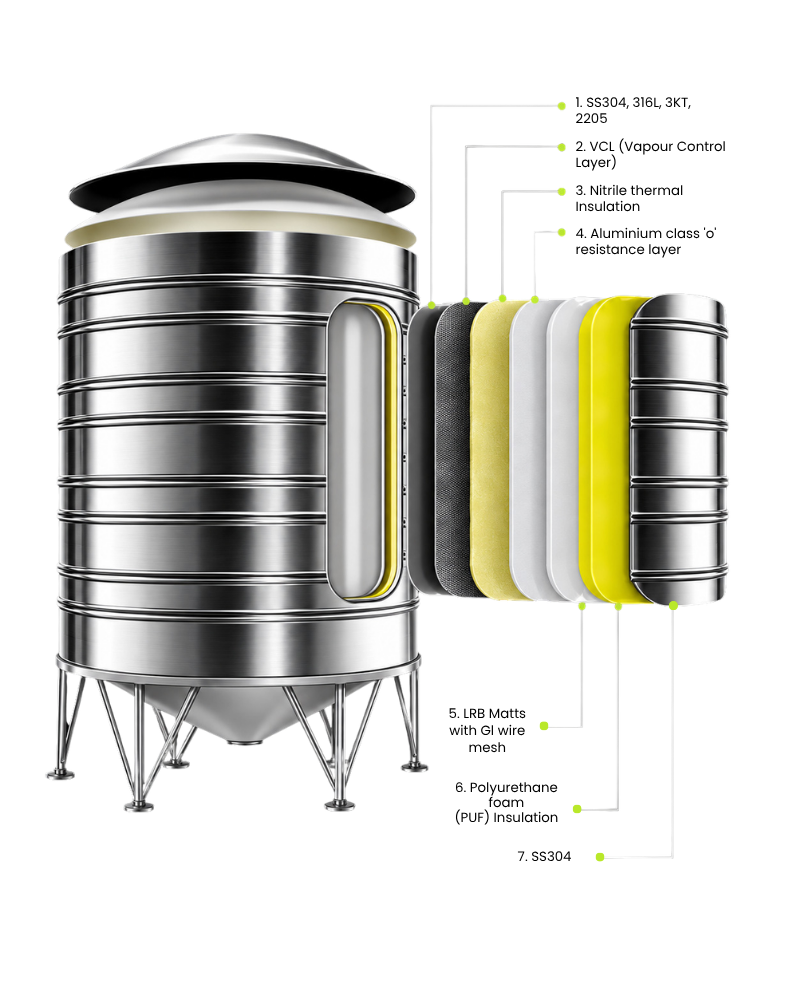

PAQOS 7-Layer Tank.
The PAQOS seven-layer construction combines stainless steel, vapour control, thermal insulation, moisture barriers and the outer protective shell.
Inner Stainless Steel
SS304, 316L, 316T and 2205 options. High-grade stainless steel sheet.
Vapour Control Layer
Aluminium foil, glass scrim and LDPE moisture barrier.
Nitrile Thermal Insulation
Elastomeric foam based on synthetic rubber for temperature control.
Aluminium Resistance Layer
Reflective aluminium foil providing an additional moisture barrier.
LRB Matts + GI Mesh
Mineral wool with wire-mesh reinforcement for thermal protection.
PUF Insulation
Closed-cell polyurethane foam insulation for thermal protection.
Outer Stainless Steel
High-grade SS304 outer stainless steel shell.
*Thickness depends on tank capacity and customer demand.
Choose the right capacity.
PAQOS Stainless Steel Water Tanks are available in capacities ranging from 500 to 5000 litres, with insulated and non-insulated configurations.
| Capacity | Type | Height with Stand | Diameter | Inlet | Outlet | Overflow | Drain |
|---|---|---|---|---|---|---|---|
| 500 L | Non Insulated | 1250 mm | 970 mm | 1" | 1" | 1" | 1.1/2" |
| Insulated | 1300 mm | 1050 mm | 1" | 1" | 1" | 1.1/2" | |
| 750 L | Non Insulated | 1400 mm | 970 mm | 1" | 1" | 1" | 1.1/2" |
| Insulated | 1475 mm | 1050 mm | 1" | 1" | 1" | 1.1/2" | |
| 1000 L | Non Insulated | 1800 mm | 970 mm | 1" | 1" | 1" | 1.1/2" |
| Insulated | 1850 mm | 1050 mm | 1" | 1.1/2" | 1" | 1.1/2" | |
| 1500 L | Non Insulated | 1425 mm | 1340 mm | 1" | 1.1/2" | 1" | 1.1/2" |
| Insulated | 1500 mm | 1420 mm | 1" | 1.1/2" | 1" | 1.1/2" | |
| 2000 L | Non Insulated | 2025 mm | 1340 mm | 1.1/2" | 1.1/2" | 1" | 1.1/2" |
| Insulated | 2125 mm | 1420 mm | 1.1/2" | 1.1/2" | 1" | 1.1/2" | |
| 2500 L | Non Insulated | 1975 mm | 1400 mm | 1.1/2" | 1.1/2" | 1" | 1.1/2" |
| Insulated | 2075 mm | 1500 mm | 1.1/2" | 1.1/2" | 1" | 1.1/2" | |
| 3000 L | Non Insulated | 1825 mm | 1600 mm | 1.1/2" | 2" | 1.1/2" | 2" |
| Insulated | 2550 mm | 1700 mm | 1.1/2" | 2" | 1.1/2" | 2" | |
| 4000 L | Non Insulated | 2425 mm | 1600 mm | 1.1/2" | 2" | 1.1/2" | 2" |
| Insulated | 2550 mm | 1700 mm | 1.1/2" | 2" | 1.1/2" | 2" | |
| 5000 L | Non Insulated | 3125 mm | 1600 mm | 1.1/2" | 2" | 1.1/2" | 2" |
| Insulated | 3250 mm | 1700 mm | 1.1/2" | 2" | 1.1/2" | 2" |
Designed for confidence.
Material selection, manufacturing technology, testing, insulation and service come together in the PAQOS approach.
Materials & Construction
- High-grade stainless steel construction
- SS304 and SS316L options
- Selected SS316T and 2205 applications
- Sheet thickness up to 3 mm in selected range
- Tailored and custom-made design options
Testing & Performance
- Hydrostatic testing
- High PREN value
- Tough and ductile construction
- Suitable for harsh environments
- High durability
Hygiene & Insulation
- Hygienic stainless steel storage
- Designed to address algae and fungus concerns
- HCFC-free polyurethane rigid foam insulation
- High-temperature insulation
- Tamper-proof construction
Service & Support
- Customer care support
- Customer care email
- Mobile application support
- ZTP service policy stated by PAQOS
- Selected-range warranty support
PAQOS Pure Water Solutions.
Explore other PAQOS water and air solutions for residential, commercial and project applications.
Need the right tank for your requirement?
Share your capacity, installation environment and application with the PAQOS team.
