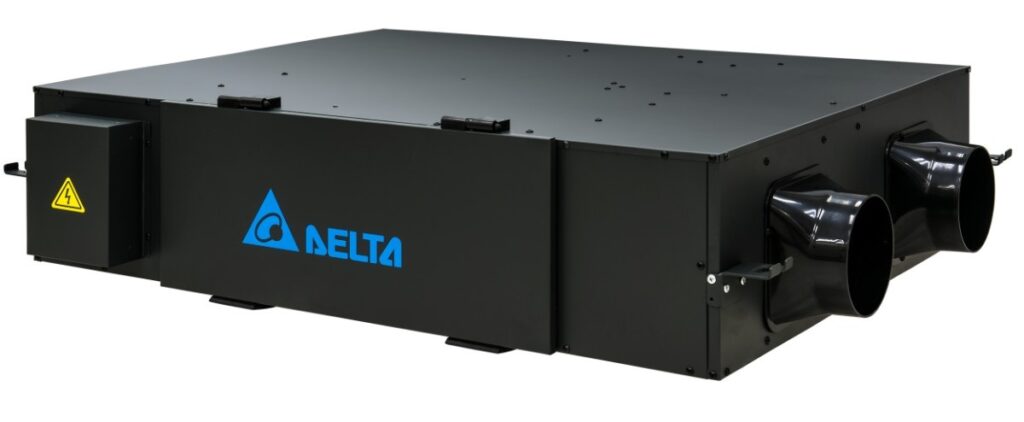

VEB350ATH
Suitable Room Size: ≤ 2000 sq. ft

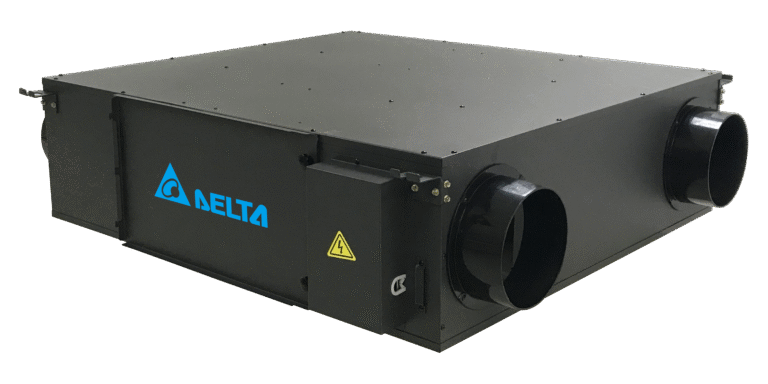

VEB500ATH
Suitable Room Size: ≤ 3500 sq. ft
VEB1000ATH
Suitable Room Size: ≤ 5000 sq. ft
Next generation HEPA filter
Pre-Filter
Initial defense layer that captures large airborne pollutants like dust, pet hair, and fibers, extending the life of the HEPA core.
HEPA Filter
Medical-grade H13 filtration. This layer applies micro-capsule technology to neutralize bacteria and trap 99.97% of microscopic allergens.
This medical-grade filtration system is certified by Eurofins (AAET4431) to prevent the spread of germs and molds.

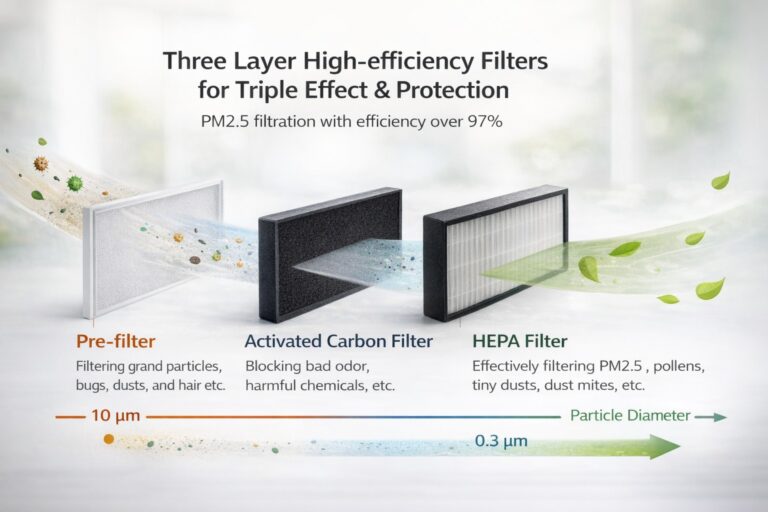

Three Layer High-efficiency Filters for Triple Effect &
Protection PM2.5 filtration with efficiency over 97%

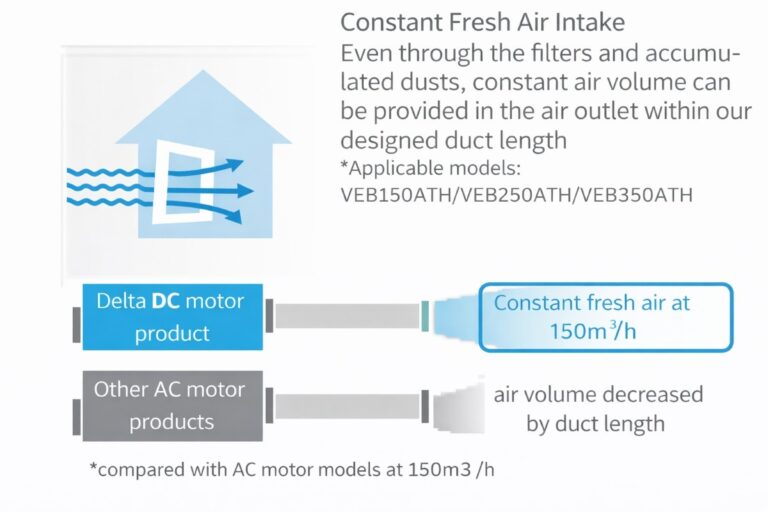

High Efficiency DC Brushless Motor
Adopting a brushless DC motor significantly reduces power consumption and ensures a longer lifespan compared to traditional AC motors. It can save up to 60% energy, making it ideal for all-day operation without wasting electricity.

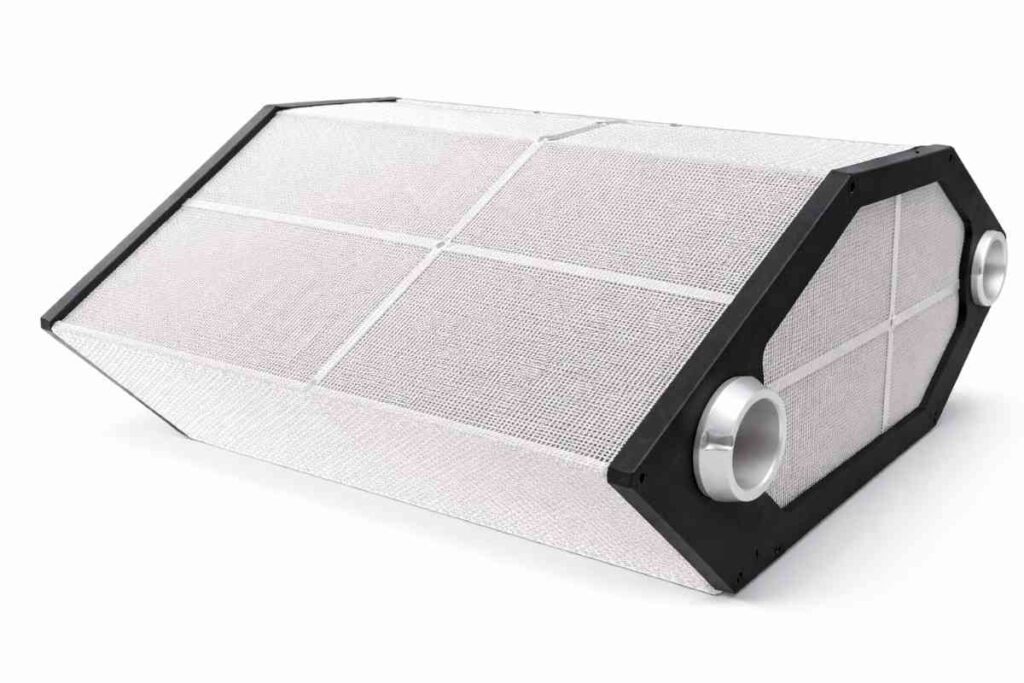

Energy Recovery Core
Smart humidity & temperature control
that reduces energy loss and boosts HVAC efficiency.
Saving more space to decorate.
Installing at both sides, adapting to different configuration.
A access door with quick hinge is easy to maintenance.

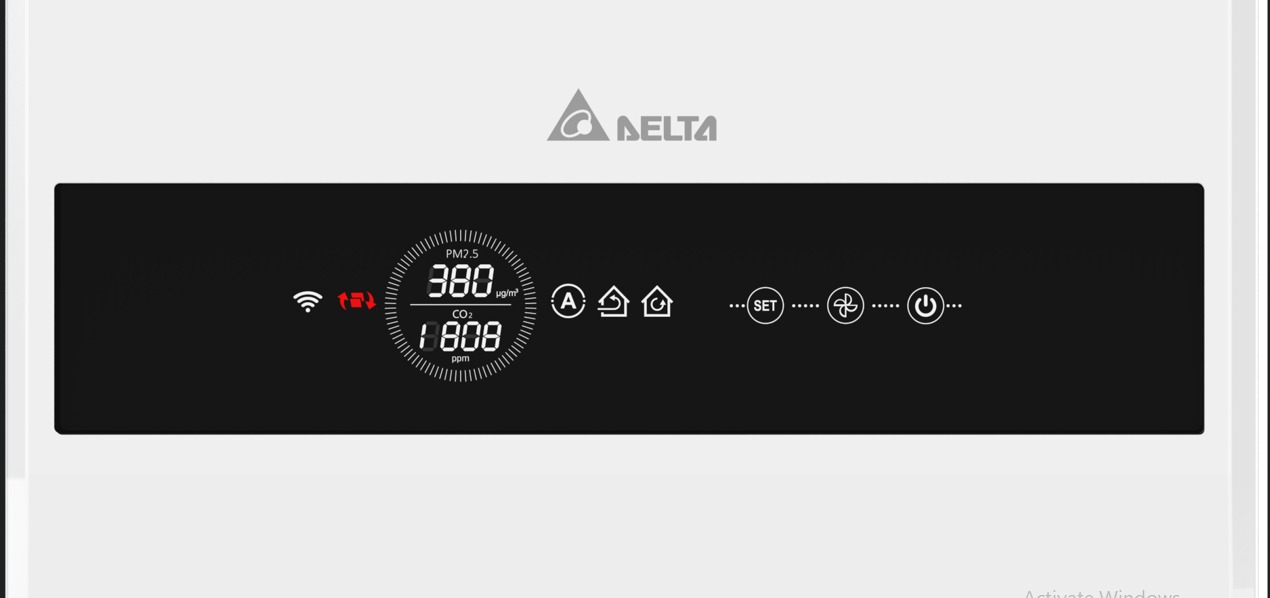

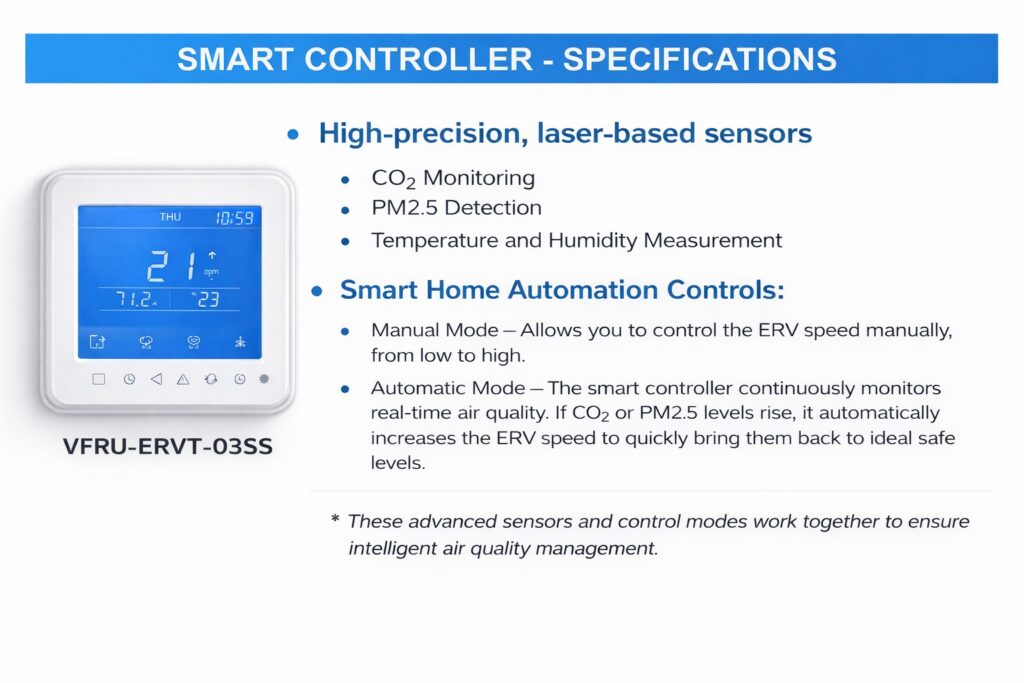

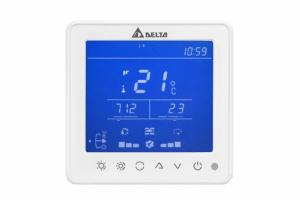

Selection of Control Panels
Easy to Monitor
• Sensing indoor PM2.5, CO2, temperature and humidity.
• Smart control auto sensing and control good indoor air quality.
• Schedule setting: 7 days and 4 periods a day.
Here’s the typed text exactly as shown in the image:
RS485 interface
MODBUS RTU protocol
System integration & control
Multiple ERVs control

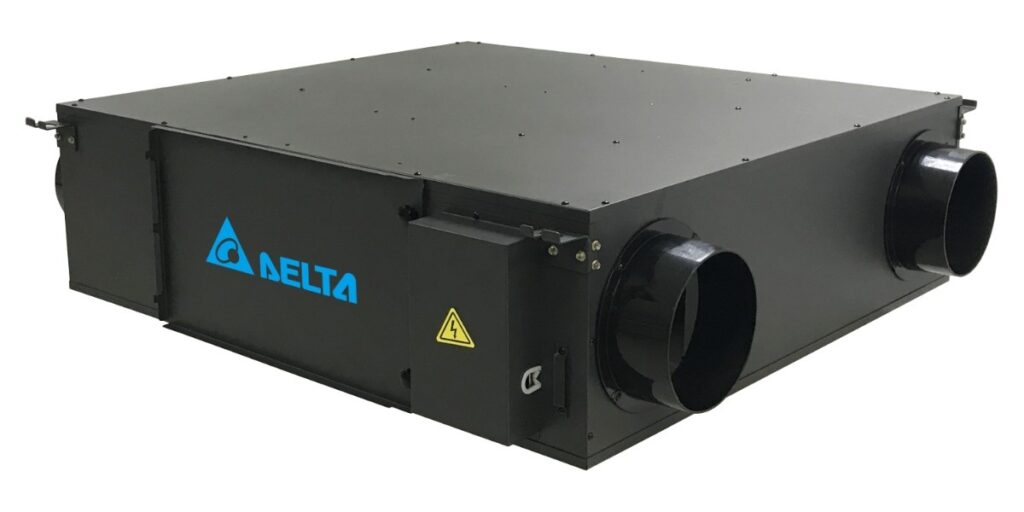

High-quality fresh air for your home

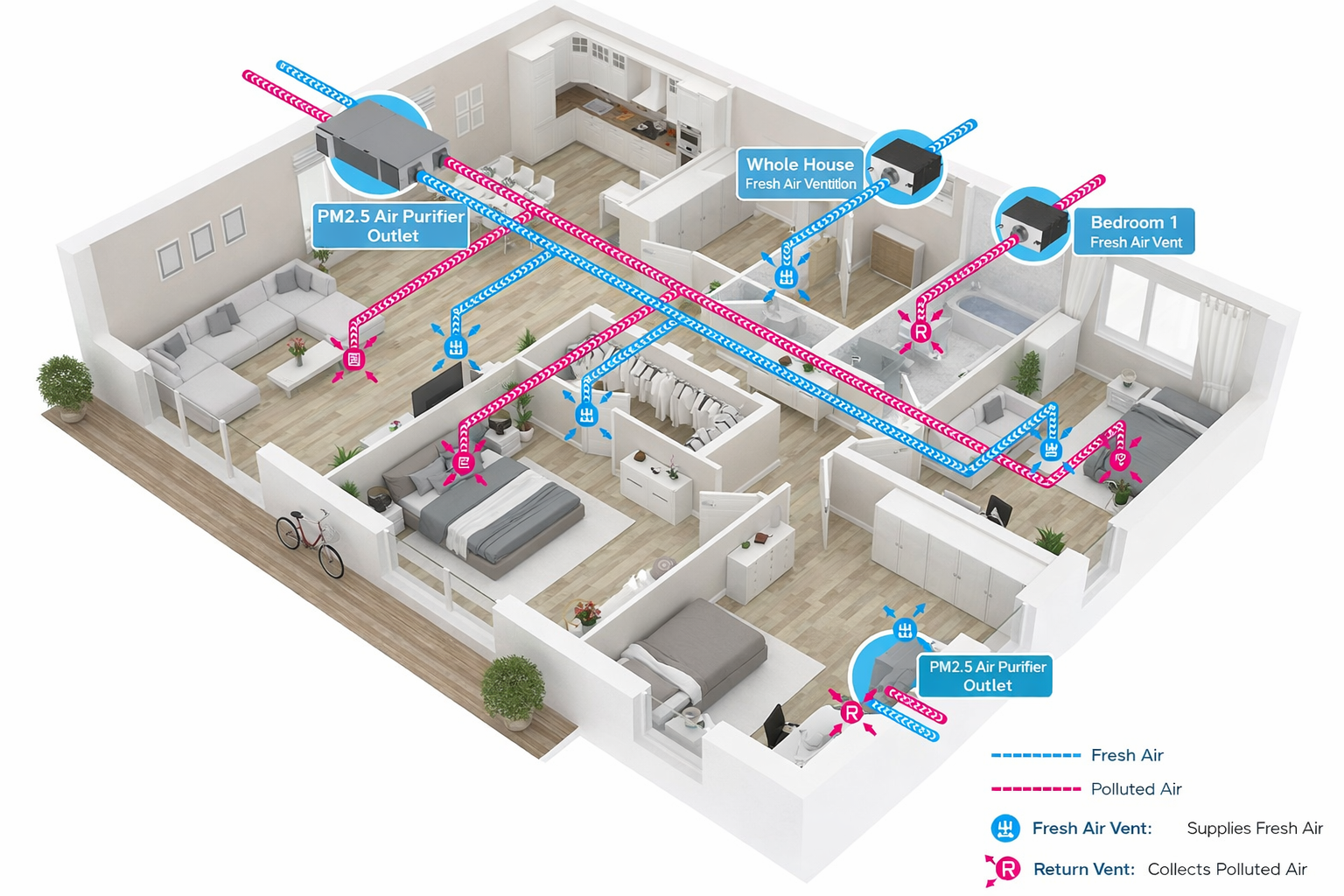

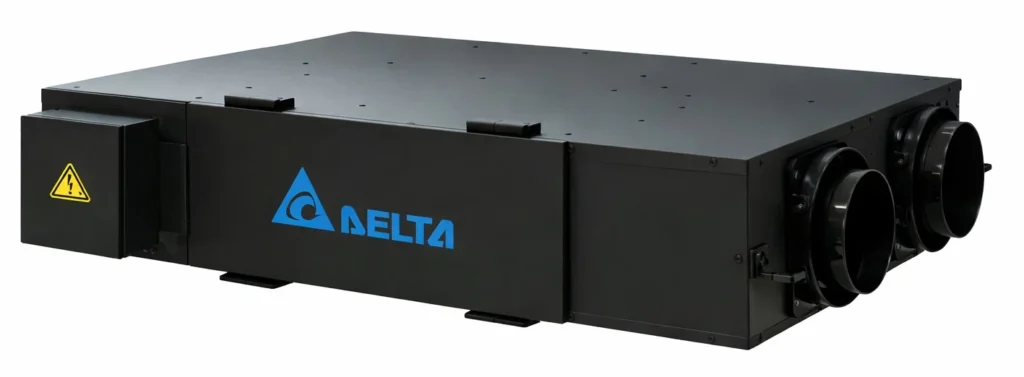

Whole-house Fresh Air
Delta energy recovery ventilator (ERV) intakes the ourdoor fresh air, filiters and purifies the air efficiently before
delivering air into the indoor space. Besides that, the system can exhaust the indoor stale air to the outdoor
environment at the same time, achieving the whole house ventilation. Users can obtain high-quality fresh air,
even when the whole room is enclosed and airtight.
By case: VEB250ATH model at 250m3/h air flow
temp. by7 °C
humidity by9 %
Optimizing Air Quality

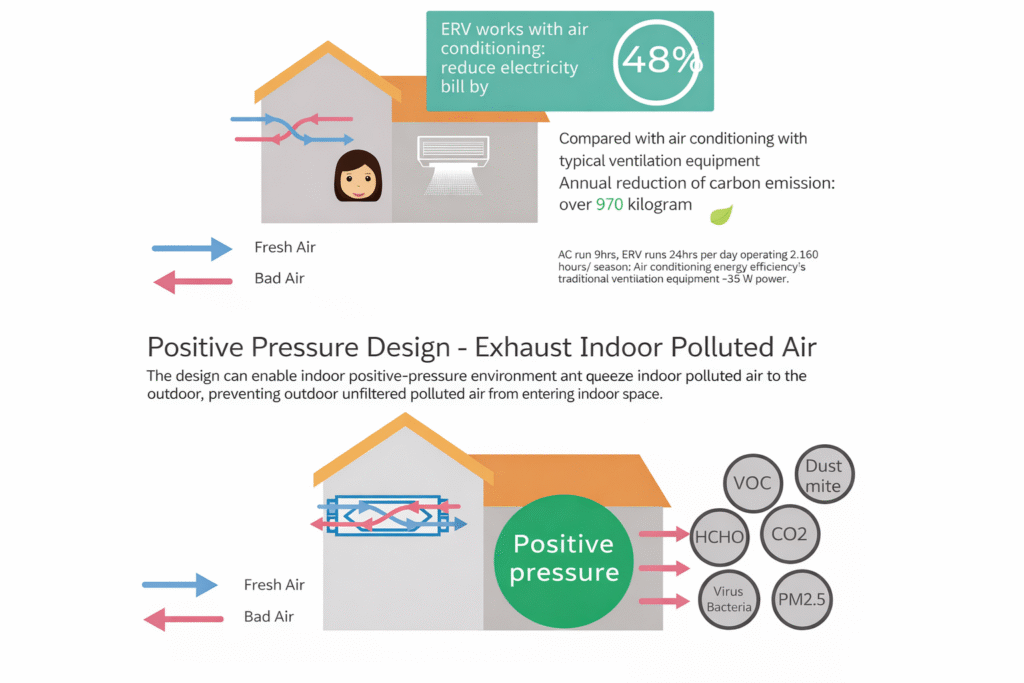

Energy Savings with 24 hours Non-stop Operation
ERV can exchange heat & moisture of the indoor and outdoor air to reduce the loading of air conditioning,
achieving comfy living environment and more energy savings
Energy recovery core
Adjust heat & moisture, to save more energy while working with HVAC system.
RS485 interface
- MODBUS RTU protocol
- System integration & control
- Multiple ERVs control
High Efficiency DC Brushless Motor
Adopting brushless DC motor enormously decreases power consumption and maintains a longer life, compared with AC motor. Energy can be saved up to 60%- all day operation without wasting energy
Slim shape design
- Saving more space to decorate
- Installing at both sides, adapting to different configuration
Dimensions
| Model Name | 350 CMH (in mm) |
500 CMH (in mm) |
1000 CMH (in mm) |
|---|---|---|---|
| Length | 1114 | 1055 | 1335 |
| Width | 743 | 1005 | 1189 |
| Height | 253 | 312 | 389 |
Wall Mouth Energy Recovery Ventilation (ERV) With PM2.5 Filtration
Wall Monthed ERV
Unlike standard air purifiers that simply filter and recirculate the same indoor air, this ERV (Energy Recovery Ventilator) actively replaces stale indoor air with a continuous supply of fresh, oxygen-rich outdoor air. This real ventilation process helps dilute indoor pollutants, odors, and VOCs while maintaining healthier indoor air quality. Perfect For All Seasons
NEXT GENERATION HEPA FILTER
Dual-Stage Filtration.
Absolute Protection.
Advanced Systems Engineering
Indoor Air Purification Mode
Air Exchange Mode
Anti-bacterial layer filters
Machine Specs
Live Analytics
Perfectly Green. Perfectly quiet. Healthy Life
Indoor Air Quality Solution
Fresh Air Supply Fan

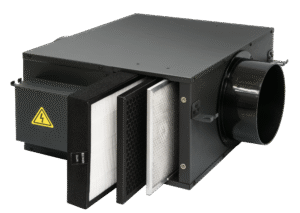

VDB650NXTH-F
Features
◢ RS485 Interface on board, able to apply with smart
home
◢ High efficiency brushless DC motor
◢ Low power consumption
◢ Low noise design
◢ Multiple high efficiency filters: Pre-filter, activated carbon
filter and HEPA filter (H13 level)
◢ The PM2.5 filtration efficiency above to 97%
◢ Three speed selection control
◢ Smart controller (Option)
Specifications
| Model | Mounting Size | Weight | Rated Input | Input Power | Max. Air flow | Max. Air Pressure | Noise | PM2.5 Filtration Efficiency | Note |
|---|---|---|---|---|---|---|---|---|---|
| PART NO. | mm | kg | Vac/Hz | Watt | m³/h | Pa | dB-A | % | |
| VDB650NXTH-F | L x W 451 x 488 |
18 | 220/50 | 120 | 650 | 300 | 42 | >97% | High |
| 70 | 510 | 200 | 37 | Mid | |||||
| 28 | 370 | 110 | 32 | Low | |||||
| 8 ~ 120 | 250 ~ 650 | 50 ~ 300 | 25 ~ 42 | RS485 |
Fresh Air Supply Fan-syatem
Fresh Air Supply Fan

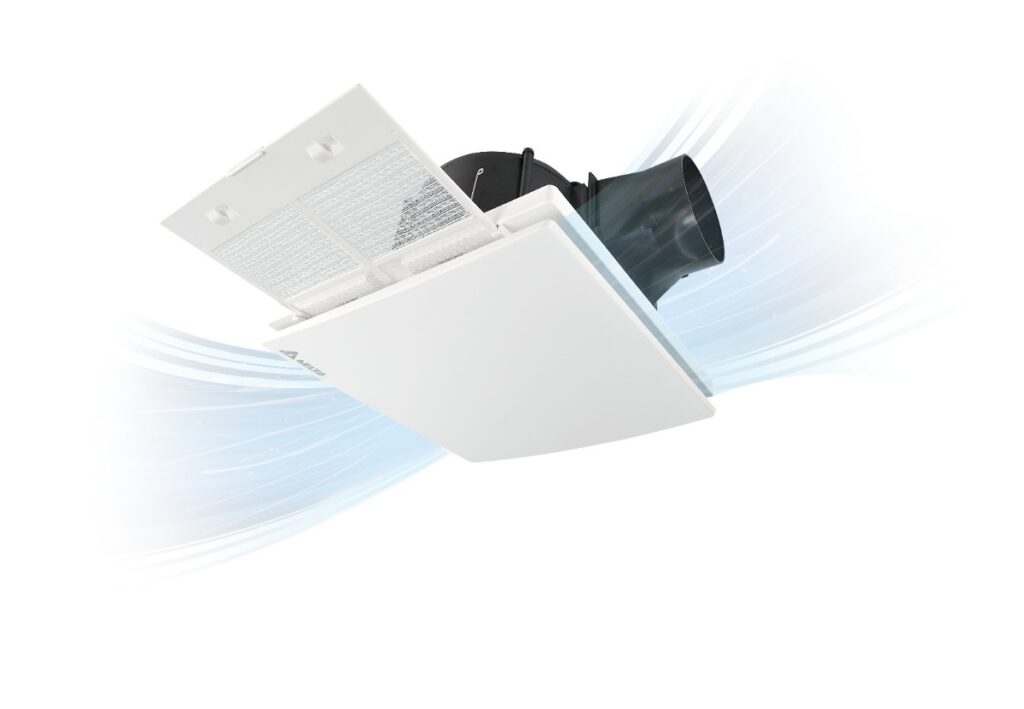

Keep your washrooms fresh with the VFB150CTH-F, a certified green product featuring powerful 150 CMH airflow and an high efficiency washable filter designed to block dust and simplify maintenance.. This energy-efficient 10.6W fan is designed for easy ceiling installation. Enjoy long-term peace of mind with a robust 5-year warranty and reliable performance
