Fresh Air.
Better Indoor Living.
Explore PAQOS indoor fresh-air solutions for homes, commercial spaces and projects — from ceiling-mounted ERVs and wall-mounted ERVs to fresh-air supply and ventilation fans.
Fresh air solutions.
Choose your ERV system.
Explore the PAQOS indoor fresh-air range. Click a product to open its complete product details, features, technical specifications, dimensions and application information.

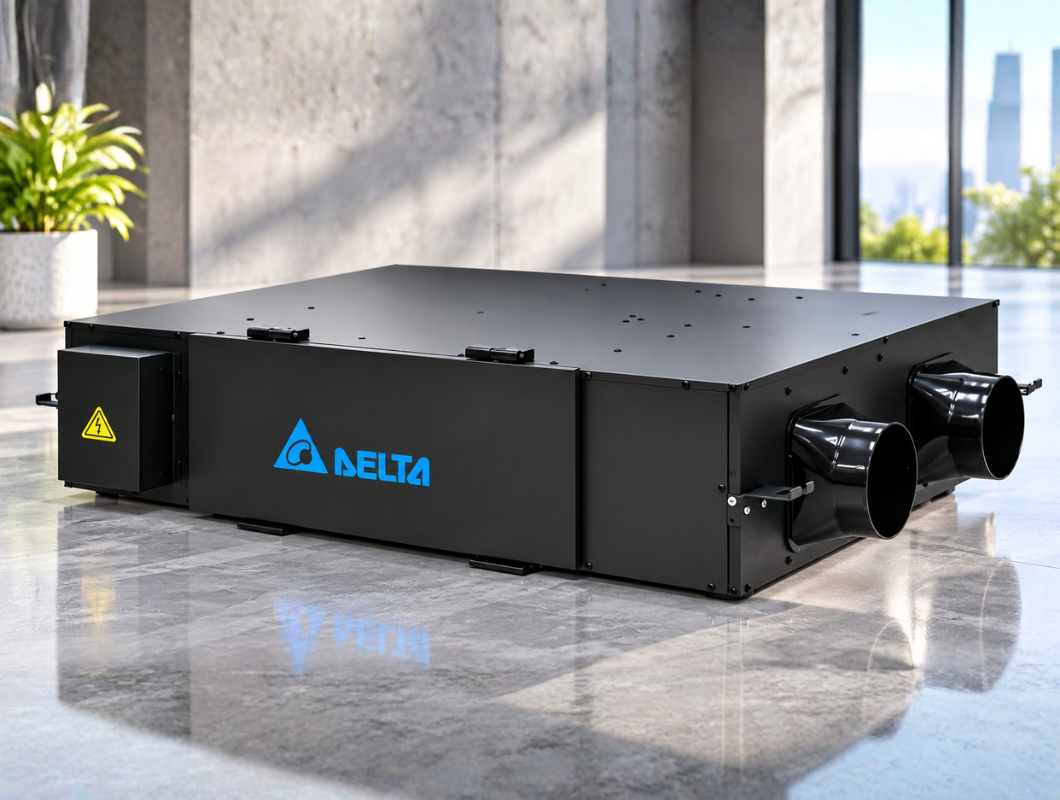

Energy Recovery Ventilator Ceiling Mount ERV.
PAQOS Ceiling Mount ERV systems are designed for controlled whole-house fresh-air ventilation: bring in outdoor air, filter it before supply, exhaust stale indoor air, and recover heat and moisture while working with HVAC.
Choose the right ERV capacity.
Click a model to see the corresponding ceiling-mount ERV airflow, pressure, noise, recovery and application details.
VEB150ATH
Compact ceiling-mounted ERV configuration for fresh-air supply, filtration, stale-air exhaust and energy recovery.
VEB250ATH

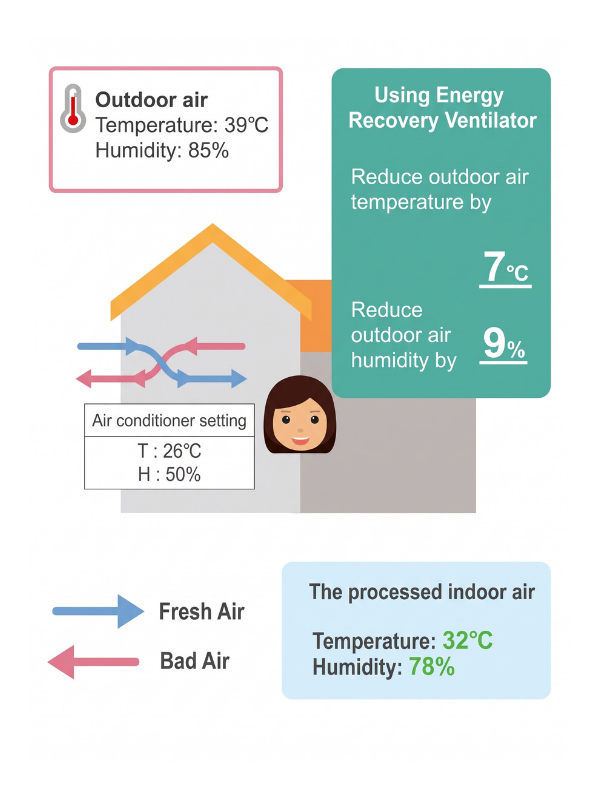

The catalogue's 250 m³/h example is used to demonstrate whole-house fresh-air exchange and energy recovery. Outdoor air is filtered before entering the indoor space while stale indoor air is exhausted.
VEB350ATH
Higher-capacity ceiling ERV for larger residential and commercial spaces where controlled whole-house fresh-air exchange is required.
VEB500ATH
Large-airflow ceiling ERV configuration for commercial, institutional and other higher-occupancy spaces.
VEB1000ATH
High-capacity ERV listed in the PAQOS product range for larger spaces. The supplied product selection guide lists 1000 m³/h airflow and an applicable area of up to 460 m².

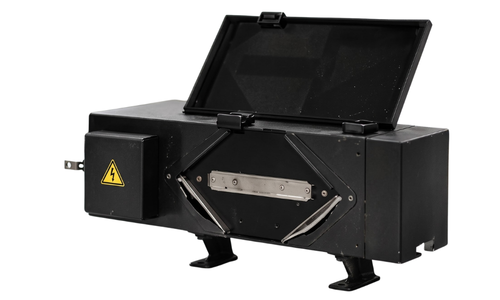

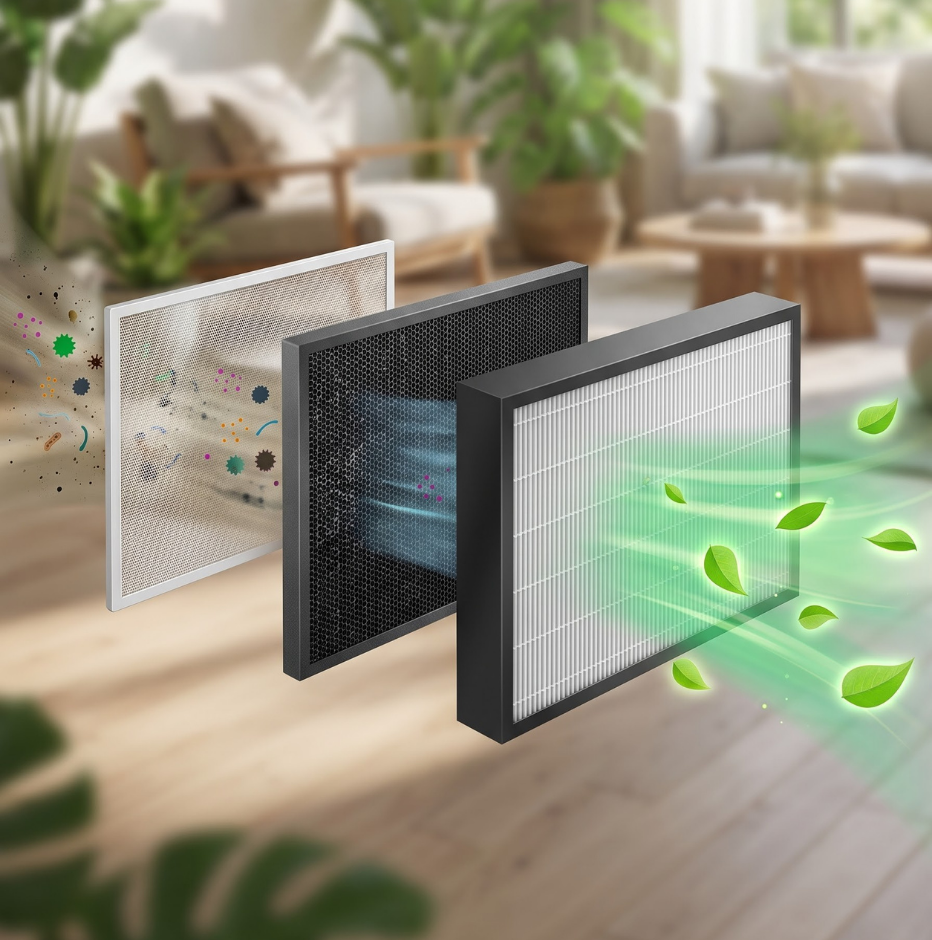

Three-stage air protection.
The supplied catalogue shows a three-stage arrangement: pre-filter, activated carbon filter and disinfection-coating HEPA filter. The current PAQOS page also identifies a 10 μm pre-filter and 0.3 μm HEPA stage.
Pre-Filter — 10 μm
Filters larger particles such as dust, bugs, hair, pollen and lint before the finer filtration stage.
Activated Carbon Filter
The supplied material identifies activated carbon for blocking bad odour and harmful chemicals.
HEPA / Disinfection-Coating Filter — 0.3 μm
The PAQOS page states H13 filtration and 99.97% capture of microscopic allergens; the supplied catalogue states PM2.5 filtration efficiency above 97%.
Engineered around efficient ventilation.
The supplied ceiling-mount catalogue groups the ERV design around high-efficiency DC motor technology, multiple filters, constant airflow, energy-saving operation, slim installation and easier maintenance.
Float the image to the right:
Pre-Filter — 10 μm
Filters larger particles such as dust, bugs, hair, pollen and lint before the finer filtration stage.
Pre-Filter — 10 μm
Filters larger particles such as dust, bugs, hair, pollen and lint before the finer filtration stage.
Pre-Filter — 10 μm
Filters larger particles such as dust, bugs, hair, pollen and lint before the finer filtration stage.
Pre-Filter — 10 μm
Filters larger particles such as dust, bugs, hair, pollen and lint before the finer filtration stage.

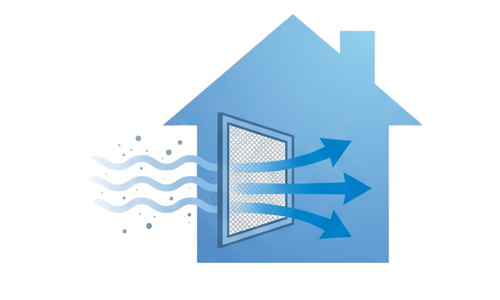

Fresh air in. Stale air out.
The supplied Delta material describes the ERV as taking in outdoor fresh air, filtering and purifying it before delivering it indoors, while exhausting stale indoor air outdoors at the same time.

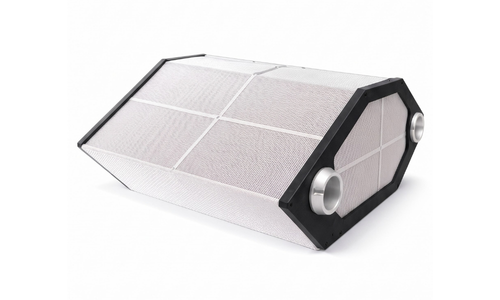

Recover heat & moisture.
ERV is designed to exchange heat and moisture between the incoming and outgoing airstreams. The supplied catalogue illustrates a 24-hour non-stop example and shows a stated electricity-bill reduction figure of 48% for its illustrated case.
24-hour non-stop operation example
The supplied brochure shows the ERV operating continuously to exchange heat and moisture with the HVAC environment.

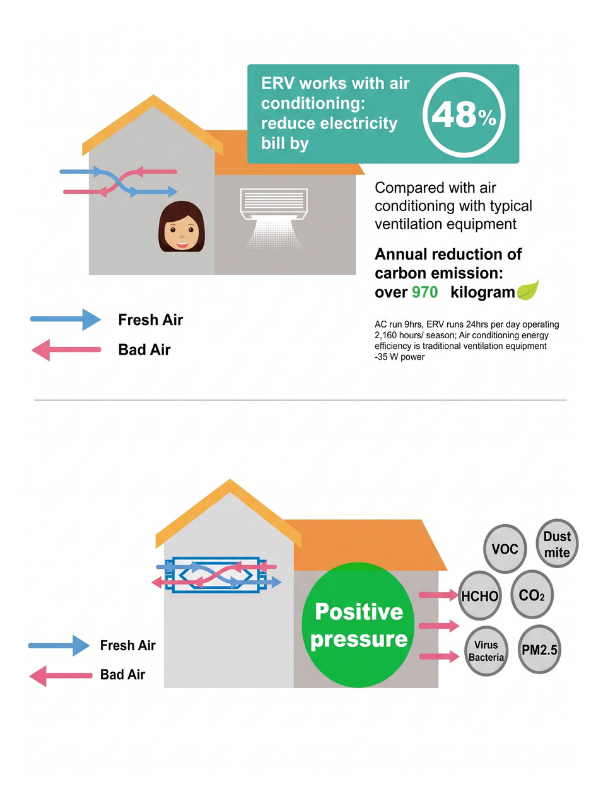

Positive-pressure ventilation concept
The supplied illustration shows a positive-pressure approach intended to exhaust indoor polluted air outdoors.
Energy-saving positioning
The brochure presents the ERV as reducing the load on air conditioning through heat and moisture exchange.

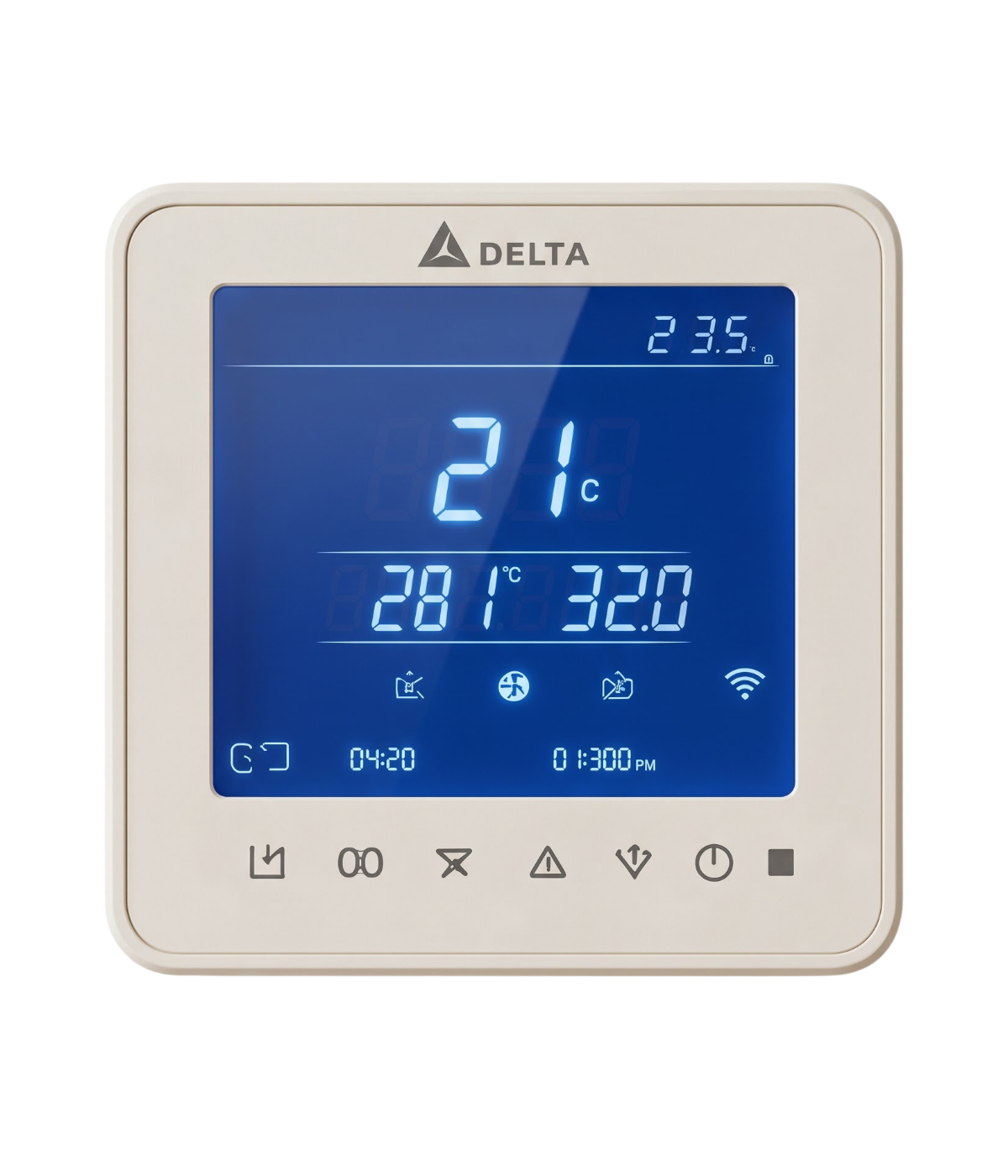

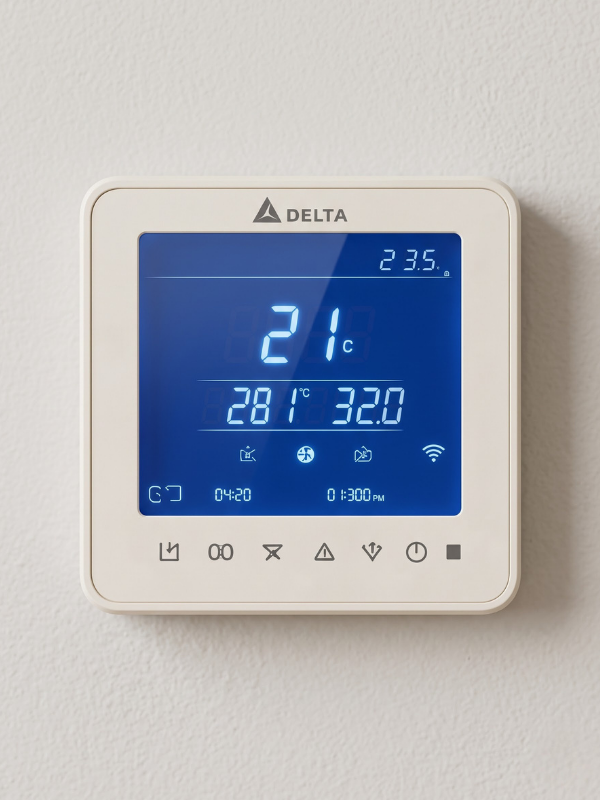

Visible control. Smarter ventilation.
The supplied controller material identifies real-time sensing for PM2.5, CO₂, temperature and humidity, with automatic operation, scheduling and RS485-based integration on supported configurations.
Ceiling Mount ERV technical data.
Values below are transcribed from the supplied technical material. Low / Middle / High correspond to the listed operating points.
| Model | Mounting Size (mm) | Weight | Power | Air Flow (m³/h) | External Static Pressure (Pa) | Noise (dB-A) | Cooling Recovery | Heating Recovery |
|---|---|---|---|---|---|---|---|---|
| VEB150ATH | 564 × 1022 | 28 kg | 17 / 27 / 40 W | 80 / 110 / 150 | 25 / 40 / 70 | 22 / 27 / 36 | 68 / 67 / 64% | 76 / 75 / 74% |
| VEB250ATH | 564 × 1022 | 28 kg | 30 / 50 / 98 W | 95 / 145 / 250 | 60 / 95 / 125 | 26 / 35 / 37 | 67 / 66 / 62% | 75 / 74 / 73% |
| VEB350ATH | 743 × 1114 | 42 kg | 93 / 142 / 168 W | 250 / 300 / 350 | 108 / 150 / 150 | 37 / 38 / 39 | 65 / 63 / 60% | 72 / 72 / 71% |
| VEB500ATH | 1055 × 1005 | 51 kg | 60 / 120 / 180 W | 260 / 390 / 500 | 55 / 75 / 90 | 33 / 36 / 39 | 59 / 57 / 55% | 63 / 63 / 61% |
| VEB1000ATH | 1335 × 1189* | — | — | 1000* | — | — | — | — |

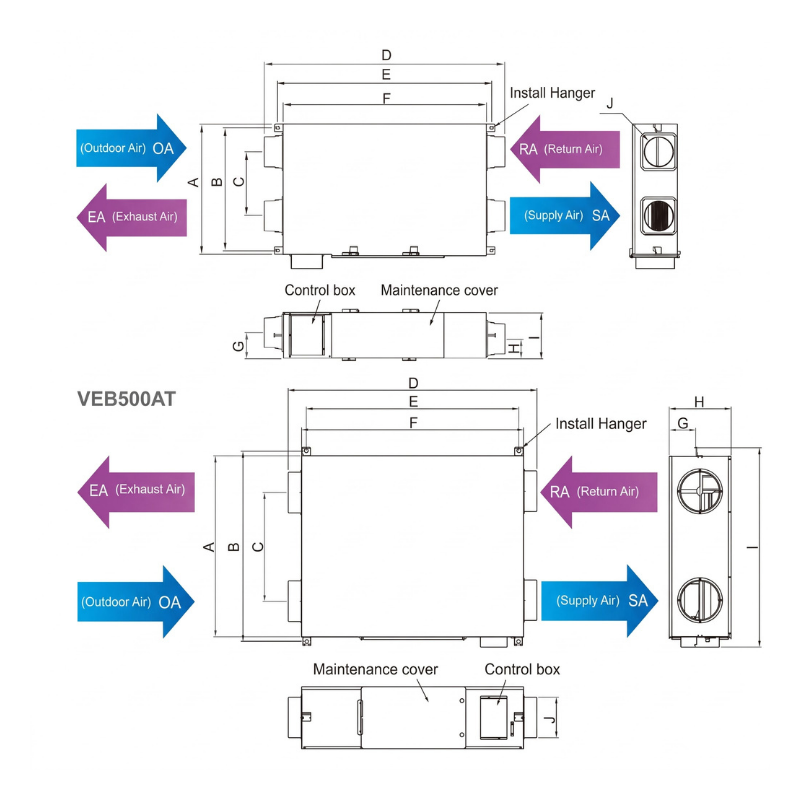

Plan the installation space.
The supplied dimension drawing identifies the overall mounting dimensions and the outdoor-air, exhaust-air, return-air and supply-air connection layout.
| Dimension Item | VEB150ATH / VEB250ATH | VEB350ATH | VEB500ATH |
|---|---|---|---|
| A | 620 | 800 | 998 |
| B | 564 | 743 | 1055 |
| C | 280 | 360 | 728 |
| D | 1088 | 1230 | 1235 |
| E | 1022 | 1114 | 1005 |
| F | 980 | 1055 | 1065 |
| G | 122 | 150 | 30 |
| H | 106 | 103 | 312 |
| I | 218 | 253 | 1122 |
| J | Ø145 | Ø145 | Ø197 |
Fresh air for enclosed spaces.
PAQOS presents the ERV range for whole-house fresh-air ventilation, while the supplied product-selection guide also shows apartment / condominium and commercial-space use cases.
Build a better fresh-air system.
Share your room size, occupancy, required airflow and installation condition with PAQOS to discuss the appropriate ceiling-mount ERV configuration.

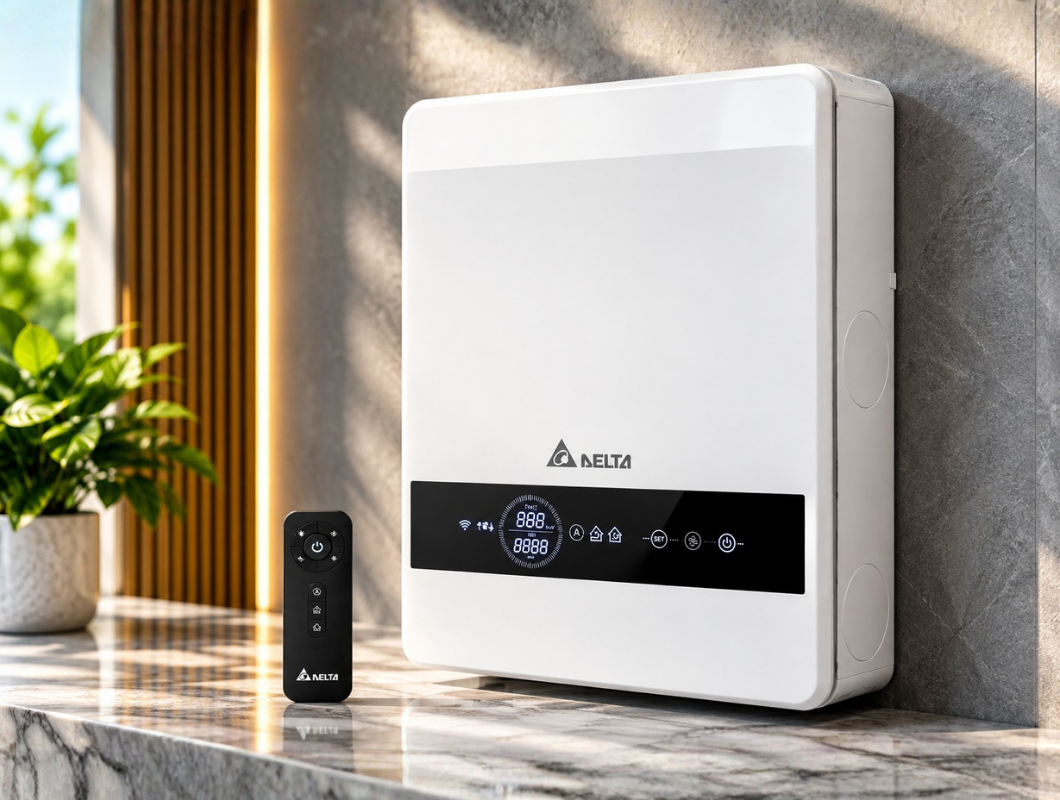

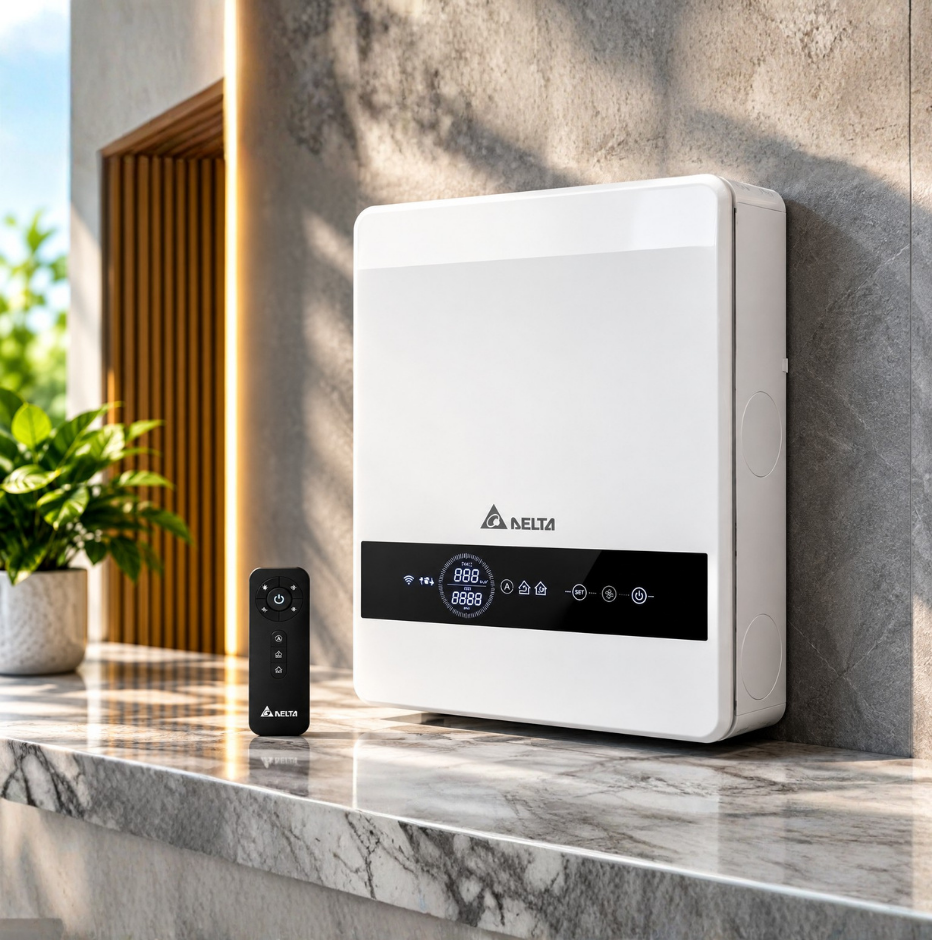

Talk to PAQOS →Fresh Air. Wall Mounted ERV.
A compact Energy Recovery Ventilator designed to bring fresh outdoor air into the room, filter incoming air, support indoor air purification and exhaust stale indoor air. A practical solution for separate spaces with controlled ventilation.
Fresh air for separate spaces.
Unlike a standard air purifier that mainly filters and recirculates indoor air, an ERV is designed around air exchange: outdoor air is introduced into the room while indoor air is exhausted outside.
The supplied PAQOS / Delta wall-mount material identifies the VEB100ATH-W as a compact wall-mounted ERV intended for individual rooms and living spaces.
Filter the air. Protect the space.
The supplied wall-mount material documents a two-stage high-efficiency filtration arrangement built around a pre-filter and HEPA filter. The design below also provides an activated-carbon tab to match the product presentation shown in your current page design.
Pre-Filter
The pre-filter acts as the initial filtration stage, capturing larger airborne particles and helping protect the downstream high-efficiency filter.
HEPA Filter
The supplied wall-mount material describes a HEPA stage for PM2.5, pollen, fine dust and dust mites. The catalogue states a 0.3 μm particle diameter and PM2.5 purification of 98% on the wall-mount model.
Activated Carbon Filter
Activated carbon is used on applicable filtration configurations to adsorb odours and selected airborne chemical compounds / VOCs. Confirm final filter configuration for the exact PAQOS wall-mount SKU before publishing it as a standard component.

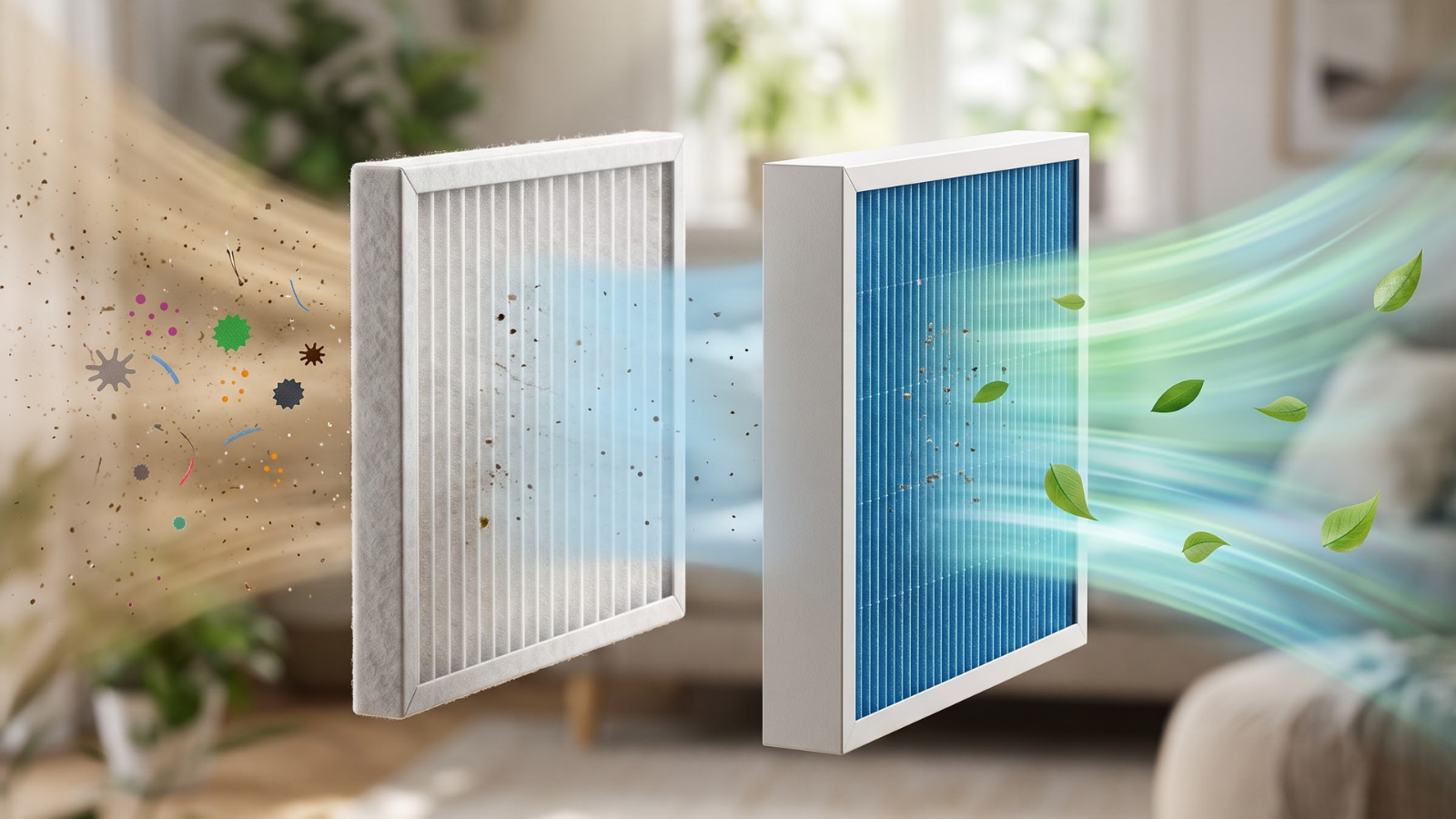

Two-stage high-efficiency filtration.
Pre-filtration handles larger airborne particles, while the HEPA stage addresses much finer particles. The supplied material identifies 10 μm pre-filter filtration and 0.3 μm HEPA filtration.
The wall-mount catalogue states PM2.5 purification of 98% for the VEB100ATH-W configuration.

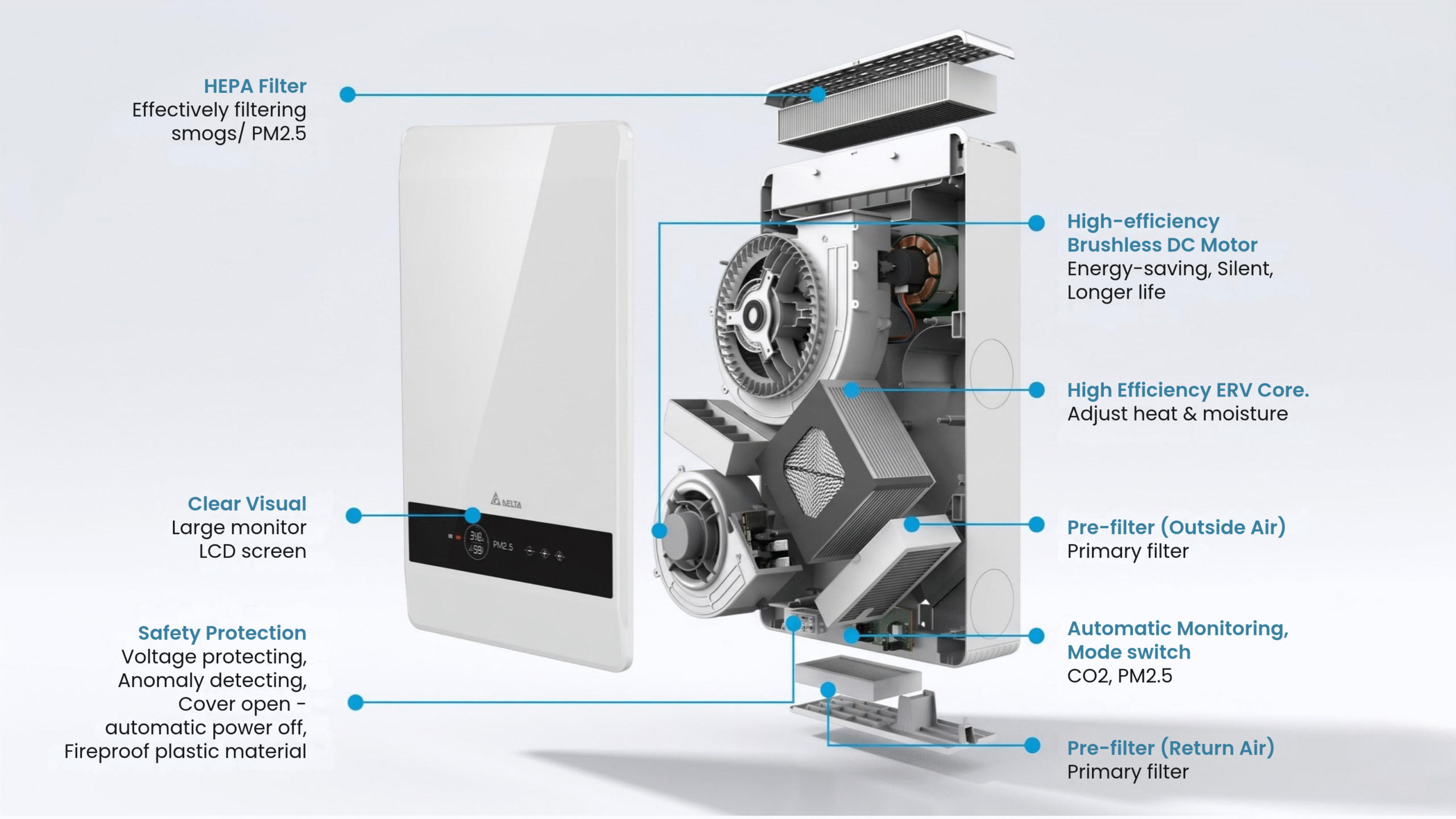

Air exchange. Purification.
The wall-mount design combines fresh-air intake, indoor-air exhaust and indoor purification in one compact wall-mounted solution.
Monitor the air. Control the system.
The supplied Delta control material describes monitoring of indoor PM2.5, CO₂, temperature and humidity, together with automatic operation, scheduling and integration capabilities on supported controller configurations.
Machine Specs
Live Analytics
The supplied controller material identifies high-precision sensing for CO₂, PM2.5, temperature and humidity.
Compact design. Practical performance.
The following feature set is based on the supplied wall-mount catalogue and your current PAQOS product presentation.
High Efficiency DC Motor
DC motor design for efficient wall-mounted ventilation operation.
Multiple Filters
The supplied material identifies multiple filtration stages for fresh-air / purification operation.
Indoor Air Circulation & Purification
Indoor air circulation and purification mode for enclosed individual spaces.
Silent Operation
Low-noise operation is identified as a wall-mount product feature.
Multiple Safety Protection
Safety protection functions are included in the supplied wall-mount product material.
Three Years Warranty
The supplied wall-mount product sheet identifies a three-year warranty.
VEB100ATH-W technical data.
Wall-mounted Energy Recovery Ventilator specification values transcribed from the supplied catalogue image.
| Specification | VEB100ATH-W |
|---|---|
| Suitable Room Size | 70 m² |
| Power Supply | 220 Vac / 50 Hz |
| Fan Speed | Three |
| Air Purification | 200 CMH / 1500 RPM |
| Fresh Air | 100 CMH / 1350 RPM |
| Energy Recovery — Cooling | >50% @ 100 CMH |
| Energy Recovery — Heating | >55% @ 100 CMH |
| Heat Recovery — Cooling | >60% @ 100 CMH |
| Heat Recovery — Heating | >70% @ 100 CMH |
| Input Power | 10–45 W |
| PM2.5 Filtration Efficiency | >98% |
| Effective Ventilation Rate | >90% |
| Control | Remote controller |
| Dimension (W × D × H) | 420 × 143 × 700 mm |
| Ducting Size | 75 mm |
| Weight | 10 kg |
| Noise — Fresh Air Mode | <44 dB(A) |
| Noise — Indoor Air Purification | <45 dB(A) |

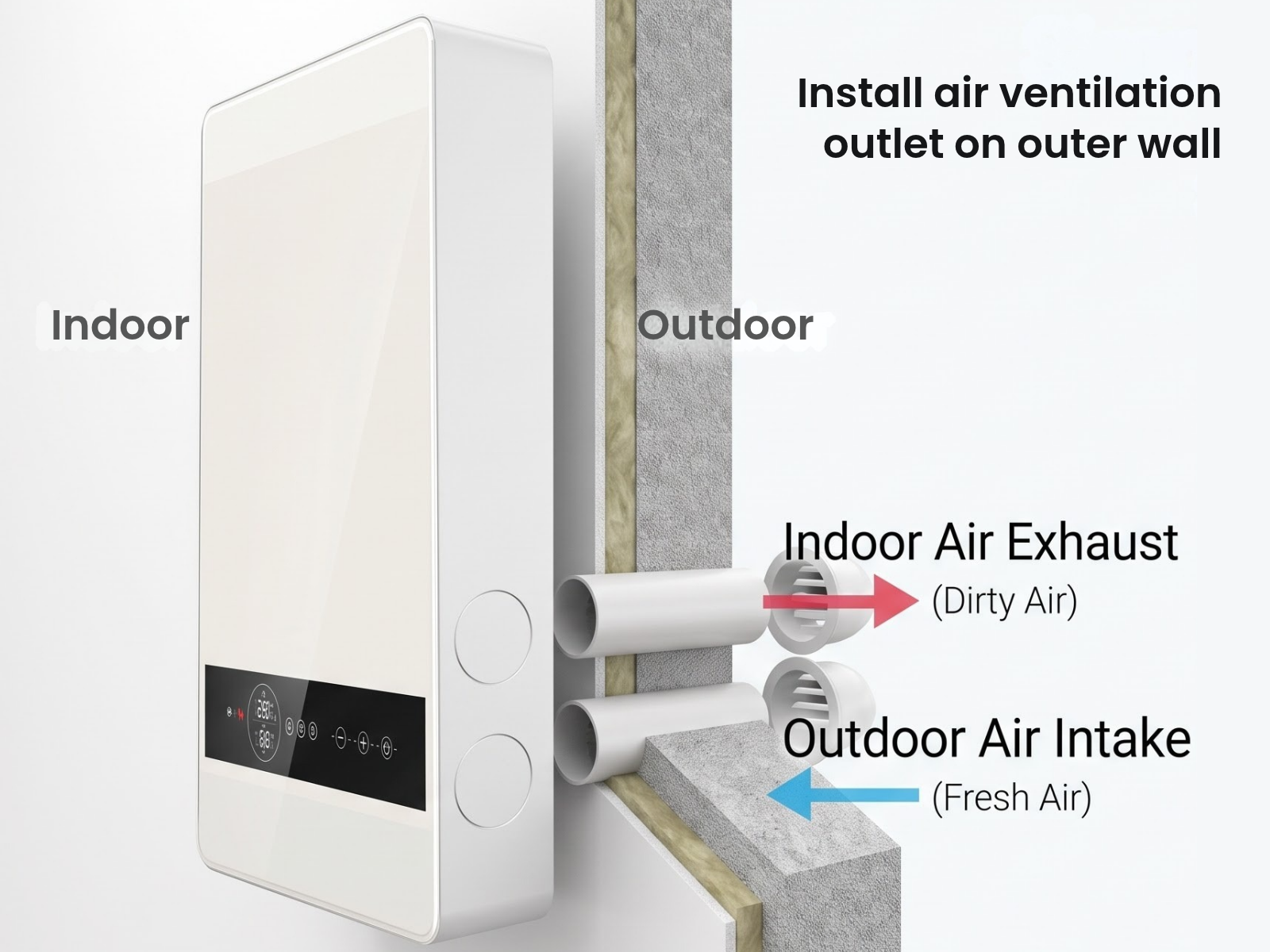

Simple installation. Minor decoration.
The supplied wall-mount documentation presents a wall-mounted arrangement with outdoor-air intake and indoor-air exhaust through the external wall.

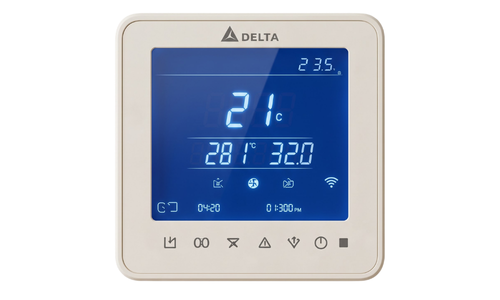

Easy to monitor. Easy to manage.
Indoor Monitoring

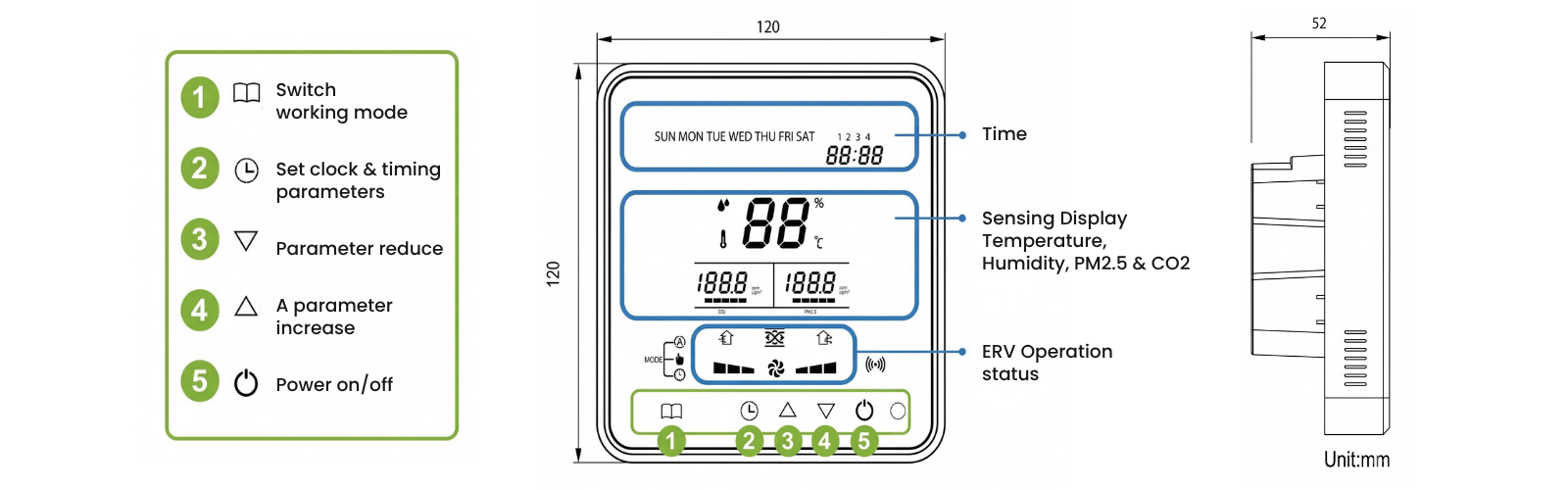

The supplied controller image describes high-precision sensing for indoor PM2.5, CO₂, temperature and humidity.
Automatic Operation
The supplied smart-controller specification describes manual and automatic modes, where the system can adjust ERV operation according to monitored indoor air quality.
One compact unit. Many indoor spaces.
The wall-mounted format is intended for individual rooms and enclosed living spaces where fresh-air exchange and filtration are required without a large ducted system.
Bedrooms
Fresh-air exchange and indoor purification for residential sleeping spaces.
Living Rooms
Continuous ventilation support for enclosed living areas.
Home Offices
Fresh-air supply for individually controlled indoor workspaces.
Separate Rooms
A dedicated wall-mounted approach for spaces that need their own air exchange.
Better air starts with fresh-air exchange.
Share your room size, installation condition and fresh-air requirement with the PAQOS team to discuss the suitable wall-mounted ERV configuration.
Talk to PAQOS →Fresh Air. Smarter Supply.
PAQOS Fresh Air Supply Fan VDB650NXTH-F is designed for filtered outdoor-air supply with high-efficiency brushless DC motor technology, multi-stage filtration and selectable airflow.
VDB650NXTH-F Fresh Air Supply.
The PAQOS VDB650NXTH-F is a fresh-air supply fan designed with a high-efficiency brushless DC motor, low power consumption, low-noise operation and high-efficiency filtration.
The current PAQOS page identifies an on-board RS485 interface, three-speed selection and an optional smart controller. citeturn654258view0

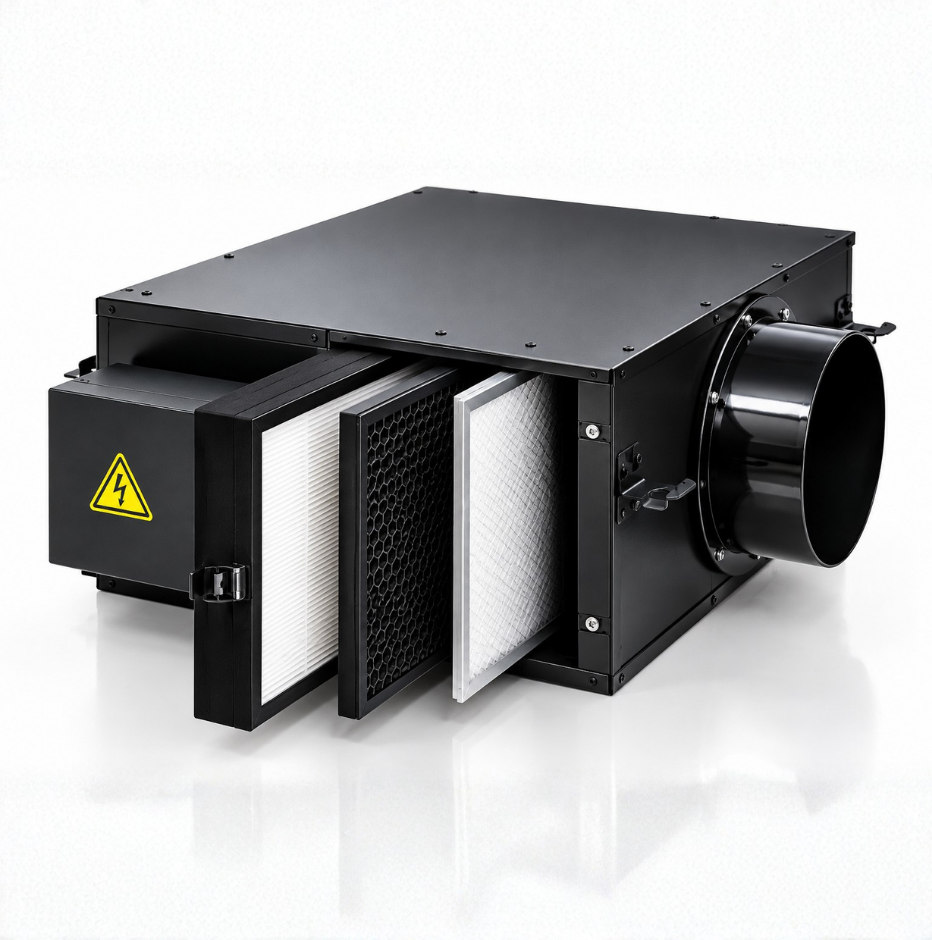

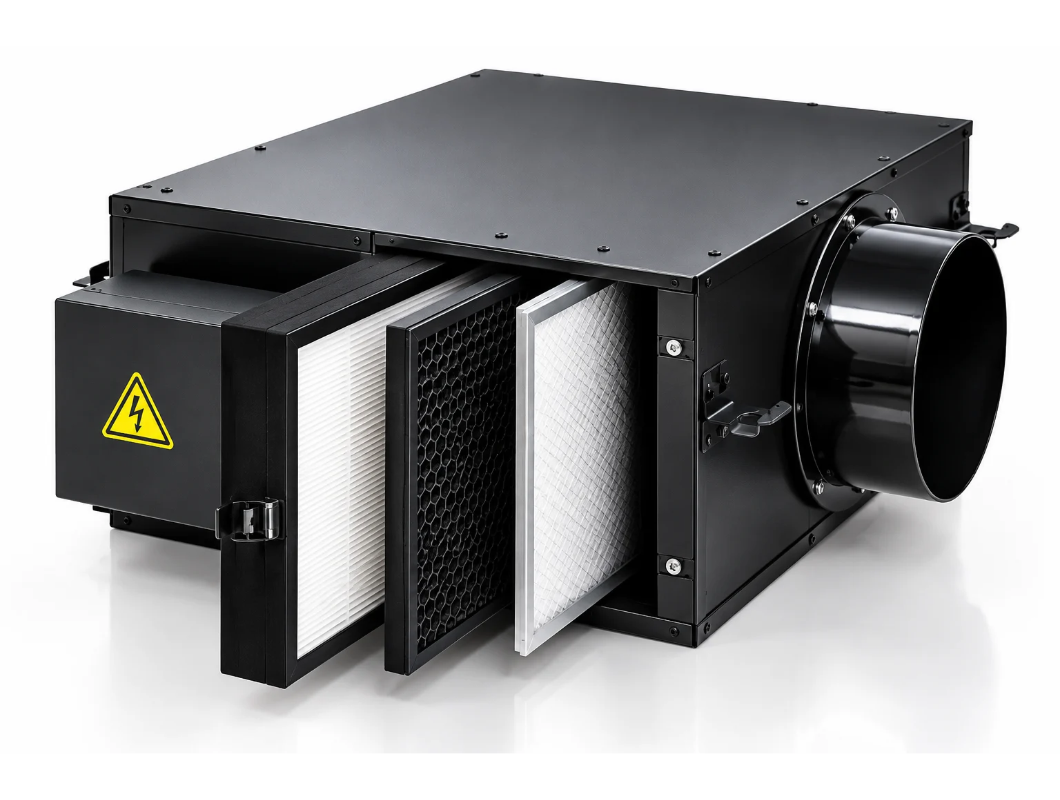

Filter the air. Support cleaner supply.
The VDB650NXTH-F is listed with multiple high-efficiency filters: pre-filter, activated carbon filter and HEPA filter at H13 level. The current PAQOS page states PM2.5 filtration efficiency above 97%. citeturn654258view0
Built for connected air management.
The VDB650NXTH-F includes an on-board RS485 interface, supporting smart-home application. The product page also lists an optional smart controller and three-speed selection control. citeturn654258view0
VDB650NXTH-F technical data.
Specification values below follow the current PAQOS Fresh Air Supply Fan product page. citeturn654258view0
| Model | Mounting Size | Weight | Rated Input | Input Power | Max. Air Flow | Max. Air Pressure | Noise | PM2.5 Filtration | Note |
|---|---|---|---|---|---|---|---|---|---|
| VDB650NXTH-F | L × W 451 × 488 mm |
18 kg | 220/50 Vac/Hz | 120 W | 650 m³/h | 300 Pa | 42 dB-A | >97% | High |
| 70 W | 510 m³/h | 200 Pa | 37 dB-A | Mid | |||||
| 28 W | 370 m³/h | 110 Pa | 32 dB-A | Low | |||||
| 8–120 W | 250–650 m³/h | 50–300 Pa | 25–42 dB-A | RS485 |
Three-speed control. Clear operating range.
The published product specifications provide separate airflow, pressure, power and noise values for High, Mid and Low operating points, plus a broader RS485 range. citeturn654258view0
Operating Modes
RS485 Range
Air Pressure: 50–300 Pa
Power: 8–120 W
Noise: 25–42 dB-A
Efficient airflow. Connected control.
A compact feature set for fresh-air supply applications.
RS485 Interface
On-board RS485 interface with smart-home application capability.

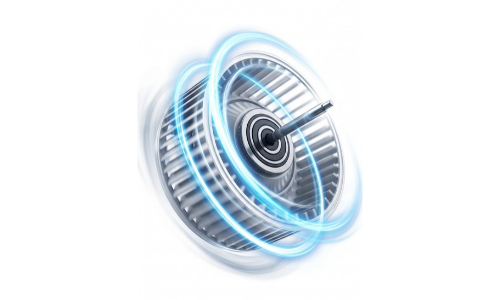

Brushless DC Motor
High-efficiency brushless DC motor design.
Low Power Consumption
Multiple operating points are listed from 8 W to 120 W.
Low Noise Design
Published operating noise range is 25–42 dB-A.
Multi-Stage Filters
Pre-filter, activated carbon and HEPA H13 listed in the supplied page.
PM2.5 Filtration
PAQOS states PM2.5 filtration efficiency above 97%.
Three-Speed Control
High, mid and low operating selections are documented.
Smart Controller Option
Optional smart controller is listed on the PAQOS page.
Fresh-air supply for modern indoor spaces.
Suitable use depends on required airflow, pressure, ducting arrangement and project conditions.
Residential Spaces
Fresh-air supply for homes and individual indoor spaces.
Smart-Home Projects
RS485 interface can support smart-home integration.
Commercial Areas
Air supply applications requiring controlled airflow.
Filtered Fresh Air
Applications requiring multi-stage filtration before supply.
Bring fresh air in. Control it better.
Share your airflow requirement, ducting conditions and indoor application with the PAQOS team to discuss the suitable fresh-air supply configuration.
Talk to PAQOS →Fresh Air. Quietly Delivered.

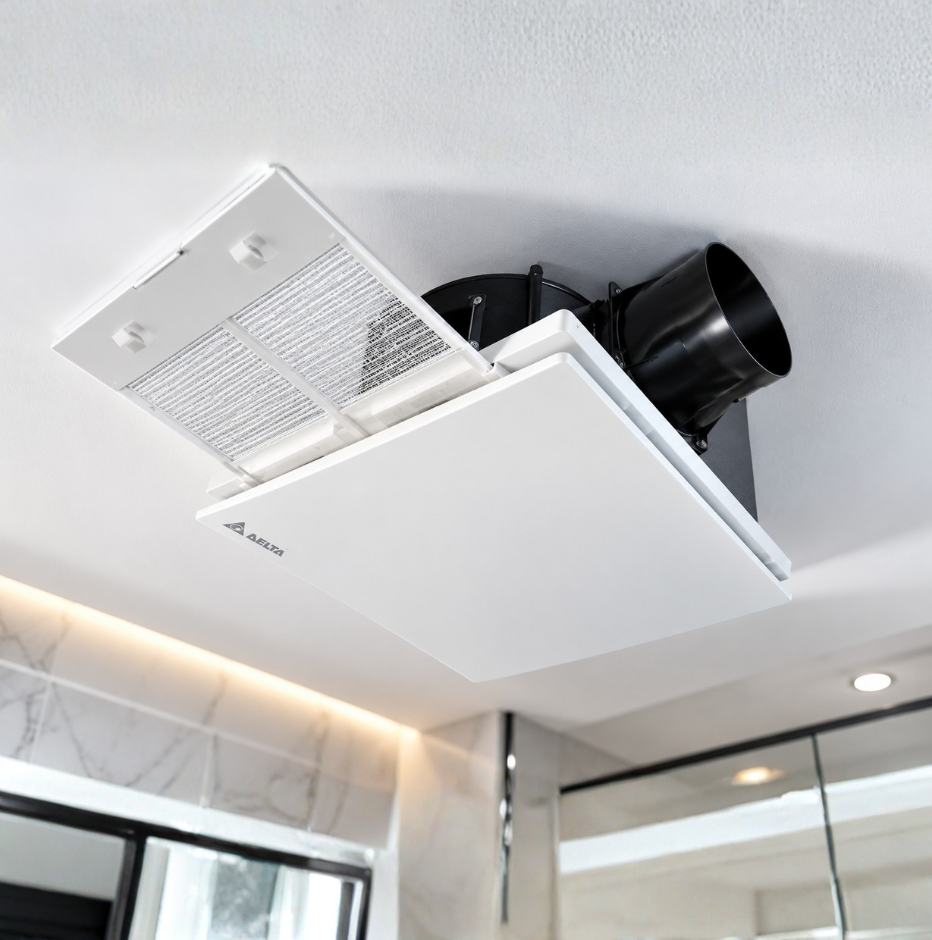

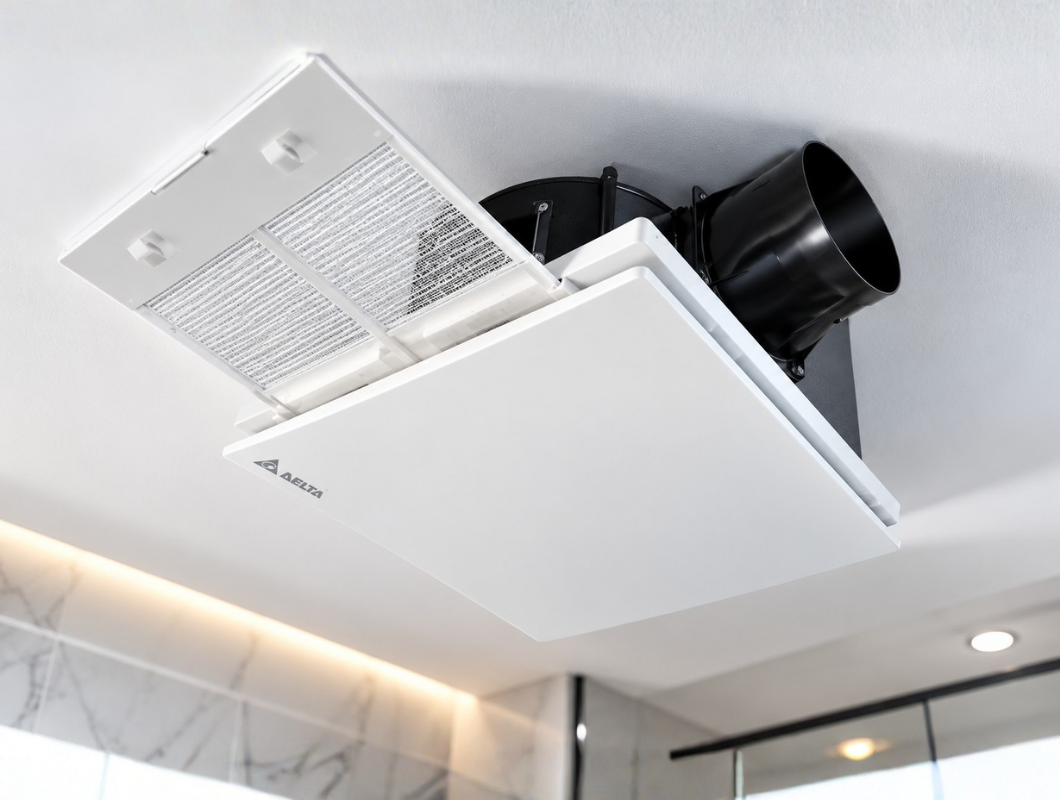

PAQOS Ventilation Fan VFB150CTH-F is a ceiling-mount ventilation solution with a removable washable filter, DC motor and compact design for practical indoor air exhaust.
Ventilation Fan. Simple. Efficient.
The VFB150CTH-F is a ceiling-mount ventilation fan with a removable long-life washable filter. The supplied product material describes the filter as easy to remove and wash, helping reduce dust entering the fan.
PAQOS currently presents this model as a practical ventilation-fan solution for washrooms, with 150 CMH airflow, 10.6 W power consumption and a 5-year warranty. citeturn542139search0turn683773search2

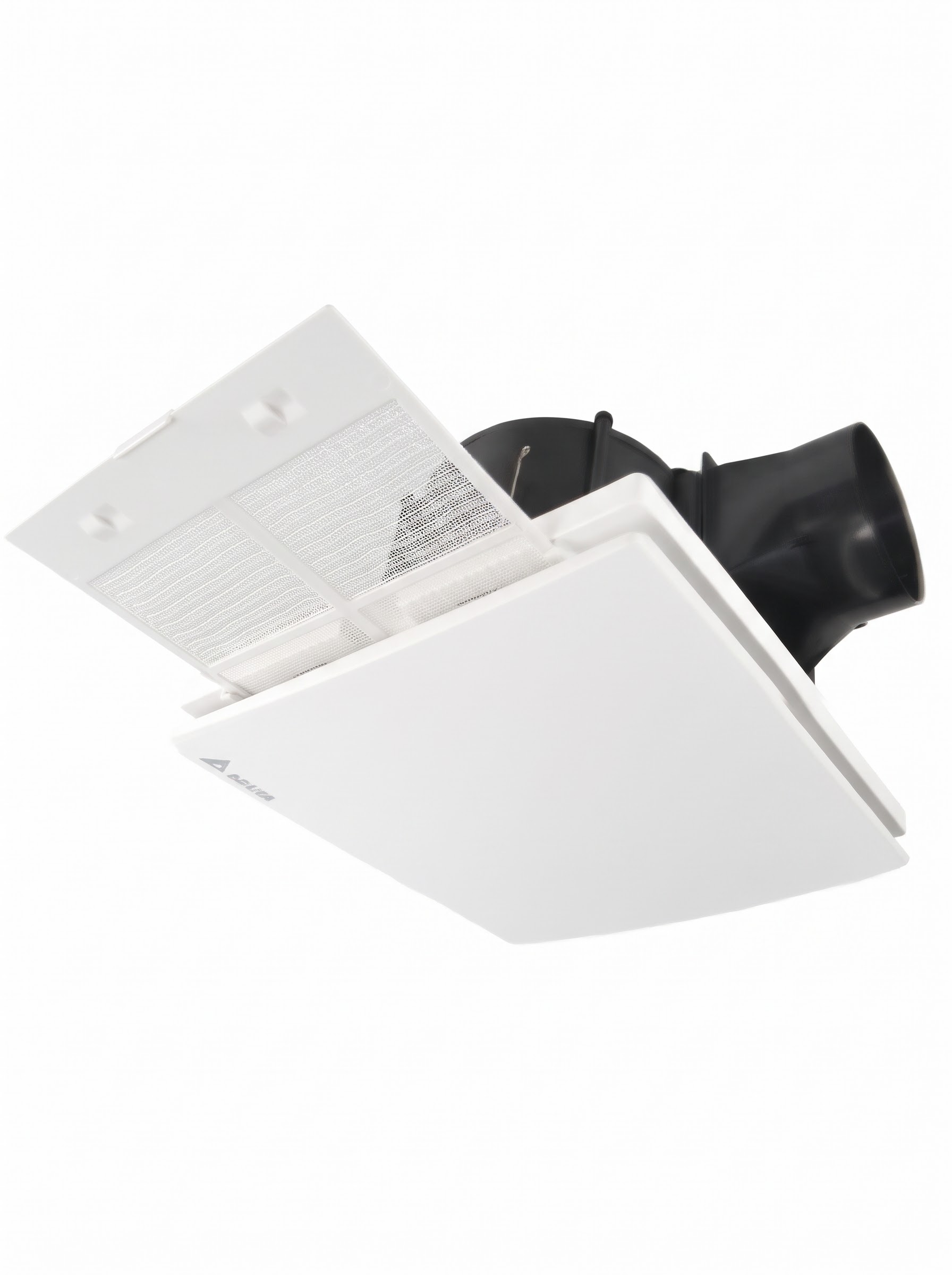

Cleaner filter. Easy maintenance.
The VFB150CTH-F filter design uses a removable, long-life high-efficiency filter that can be pulled out and washed. The supplied material says this helps tackle the cleaning difficulty of conventional ventilation-fan filters.
Practical ventilation. Built for daily use.
Product features and performance points are based on the supplied VFB150CTH-F material and current PAQOS presentation.
Power-Saving DC Motor
The product uses a DC motor design for efficient operation.
Washable Filter
Removable high-efficiency filter for easier routine cleaning.
150 CMH Airflow
Maximum listed airflow of 150 cubic metres per hour.
Low Power
Listed power consumption is 10.6 W.
Low Noise
Published noise value is 40 dB-A.
Ceiling Installation
Designed as a ceiling-mount ventilation-fan format.
Ø100 Duct
The supplied specification lists a 100 mm duct size.
Compact Grille
Grille size is listed as 273 × 273 mm.
5-Year Warranty
The supplied product material and Delta product page list a 5-year whole-machine warranty.
Compact footprint. Clear technical data.
The supplied catalogue provides the dimensional drawing and performance curve for the VFB150CTH-F model.

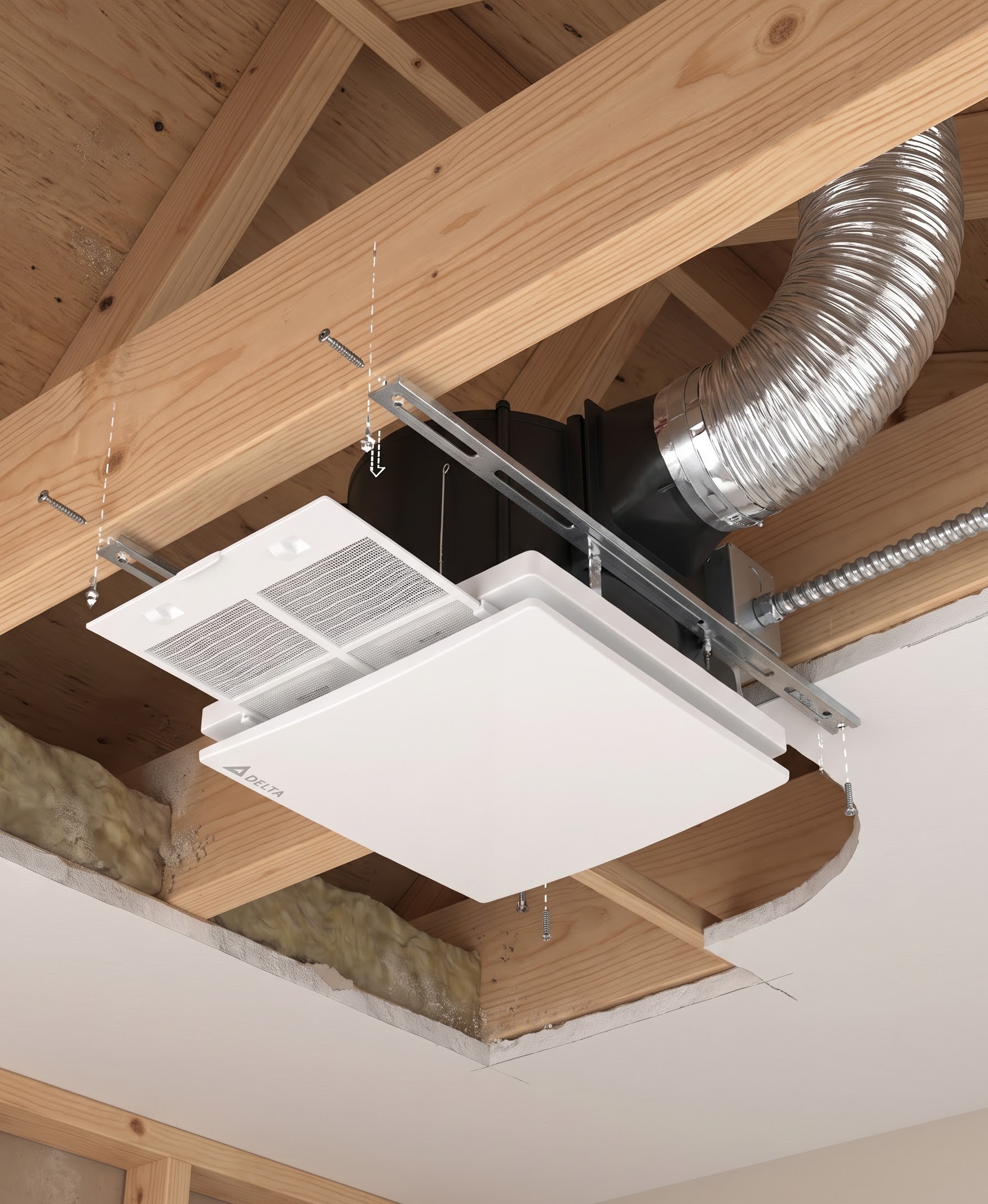

Installation & Performance
The supplied technical material identifies the VFB150CTH-F as a ceiling-mount fan with a Ø100 duct. The performance curve is based on airflow and pressure conditions.
VFB150CTH-F technical data.
Complete specification table from the supplied VFB150CTH-F product material. citeturn683773search2turn783743search1
| Model | Grille Size | Mounting Opening | Duct Size | Weight | Power Rating | Power Consumption | Max. Airflow | Max. Air Pressure | Noise |
|---|---|---|---|---|---|---|---|---|---|
| VFB150CTH-F | 273 × 273 mm | 210 × 210 mm | Ø100 | 1.4 kg | 220/50 Vac/Hz | 10.6 W |
150 CMH 88.3 CFM |
116 Pa 0.47 inAq |
40 dB-A |
Designed around simple maintenance.
A focused ventilation solution combining a DC motor, washable high-efficiency filter and ceiling-mounted installation.
DC Motor
Power-saving DC motor technology is identified in the product material.
Washable Filter
Removable filter design allows the filter to be washed and reused.
High Airflow
Maximum listed airflow reaches 150 CMH.
5-Year Warranty
The product is listed with a 5-year whole-machine warranty.
Practical ventilation for everyday spaces.
The VFB150CTH-F is presented as a ceiling-mount ventilation solution, particularly for washroom ventilation and similar indoor exhaust applications. citeturn542139search0
Washrooms
Practical ceiling ventilation for washroom exhaust and air movement.
Bathrooms
Compact ceiling-mounted format for everyday bathroom ventilation needs.
Utility Areas
Suitable where controlled air exhaust is required in compact indoor areas.
Residential Projects
Designed for integration into residential ceiling ventilation layouts.
Keep indoor spaces fresh and comfortable.
Share your application, ceiling condition and ventilation requirement with the PAQOS team to discuss the suitable fan configuration.
Talk to PAQOS →Indoor Fresh Air FAQs.
Common questions about PAQOS Energy Recovery Ventilators, filtration, controls, airflow and the current ERV range.
What is an Energy Recovery Ventilator?
What filtration is available?
Can the system be connected to smart controls?
What does the VDB650NXTH-F provide?
Which room sizes are listed for the current PAQOS ERV range?
Explore more PAQOS solutions.
Discover complementary water and air solutions for homes, businesses and projects.
Stainless Steel Water Tanks
Hygienic and durable water-storage solutions for residential and project applications.
View Product
RO Water Purification
Reverse osmosis solutions for clean and fresh drinking water applications.
View Product
Softener Filter
Filtration and softening systems for hard-water and water-quality requirements.
View Product
Pressure Booster
Automatic pressure-boosting systems for consistent water flow.
View Product
Heat Pump
NextGen hot-water systems designed around efficiency, durability and easy operation.
View Product
Indoor Fresh Air System (ERV)
Energy recovery ventilation solutions for fresh-air supply and indoor air quality.
View Product
